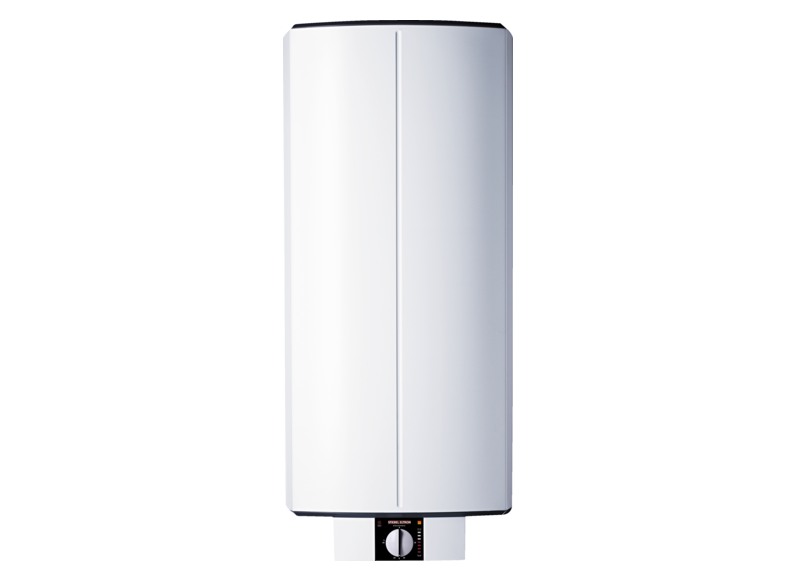

Wall mounted cylinder
SH 120 S electronic

  • Product details

    Convenient and accurate control of your hot water

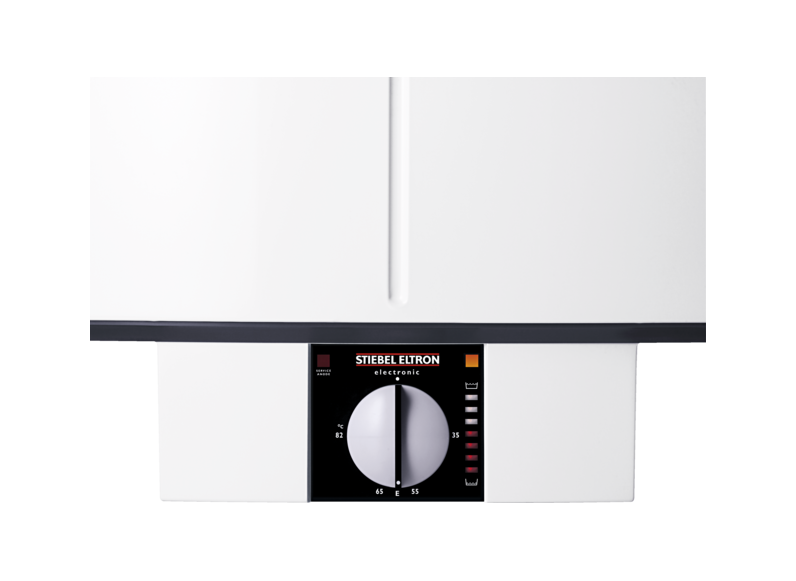

    Your wish is this wall mounted cylinder's command. It features high grade thermal insulation, meaning only a minimal amount of energy is lost in operation. To facilitate effortless temperature settings, we have integrated an easy-to-use control element. An LED indicator shows you the amount of heat currently stored. This give you the optimum overview and more moments to relax.



    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 073051

    Connected load ~ 230 V: 1-4 kW

    Connected load ~ 400 V: 3-6 kW

    Power supply: 1/N/PE, 2/N/PE, 3/N/PE

    Rated voltage: 230/400 V

    Frequency: 50/- Hz

    Load profile: L

    Energy efficiency class: C

    Standby energy consumption/24 h at 65 °C: 0.99 kWh

    Nominal capacity: 120 l

    Mixed water amount at 40 °C: 182 l

    Temperature setting range: 35-82 °C

    Max. flow rate: 18 l/min

    Height: 1210 mm

    Width: 510 mm

    Depth: 510 mm

    Show all

    Download as PDF

    Equipment datasheet
