Wall mounted cylinder
SH 100 S electronic

  • Product details

    Convenient and accurate control of your hot water

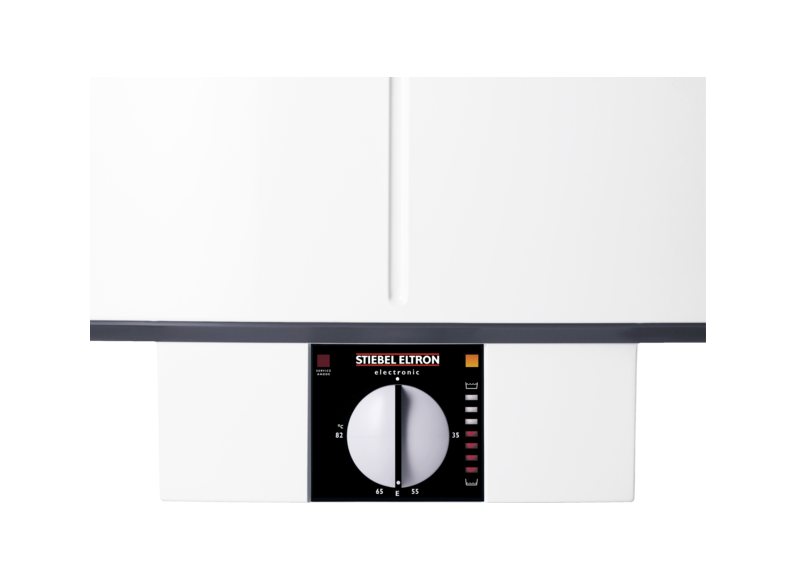

    Your wish is this wall mounted cylinder's command. It features high grade thermal insulation, meaning only a minimal amount of energy is lost in operation. To facilitate effortless temperature settings, we have integrated an easy to use control element. An LED indicator shows you the amount of heat currently stored. This give you the optimum overview and more moments to relax.



    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 073050

    Connected load ~ 230 V: 1-4 kW

    Connected load ~ 400 V: 3-6 kW

    Power supply: 1/N/PE, 2/N/PE, 3/N/PE

    Rated voltage: 230/400 V

    Frequency: 50/- Hz

    Load profile: L

    Energy efficiency class: C

    Standby energy consumption/24 h at 65 °C: 0.86 kWh

    Nominal capacity: 100 l

    Mixed water amount at 40 °C: 133 l

    Temperature setting range: 35-82 °C

    Max. flow rate: 18 l/min

    Height: 1050 mm

    Width: 510 mm

    Depth: 510 mm
