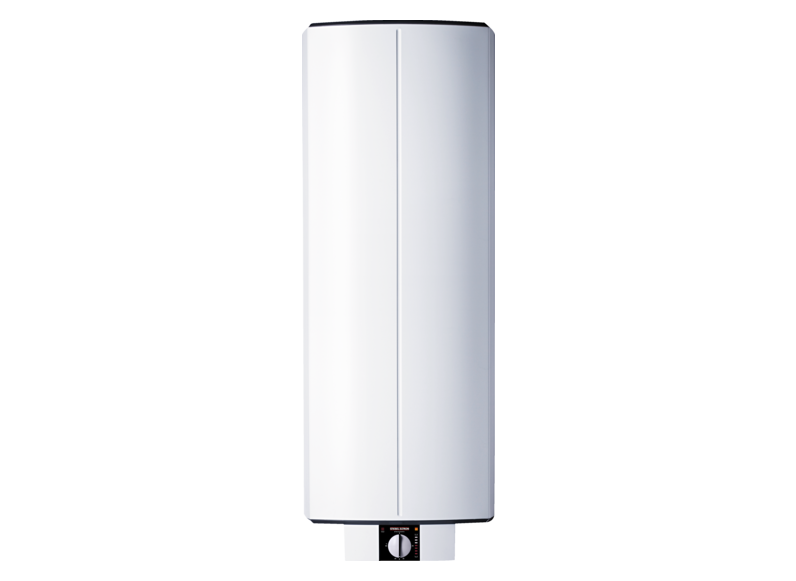

Wall mounted cylinder
SH 150 S electronic

    • Hydraulically controlled wall mounted cylinder
    • Electronic heat content indicator via LEDs
    • Simple temperature selection from 35-82 °C with variable adjustment on the appliance
    • Temperature limit possible
    • Special enamel coating for a long service life
    Questions about the product Get contact

    Product details

    Convenient and accurate control of your hot water

    Your wish is this wall mounted cylinder's command. It features high grade thermal insulation, meaning only a minimal amount of energy is lost in operation. To facilitate effortless temperature settings, we have integrated an easy to use control element. An LED indicator shows you the amount of heat currently stored. This give you the optimum overview and more moments to relax.


    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 073052

    Connected load ~ 230 V: 1-4 kW

    Connected load ~ 400 V: 3-6 kW

    Power supply: 1/N/PE, 2/N/PE, 3/N/PE

    Rated voltage: 230/400 V

    Frequency: 50/- Hz

    Load profile: XL

    Energy efficiency class: C

    Standby energy consumption/24 h at 65 °C: 1.10 kWh

    Nominal capacity: 150 l

    Mixed water amount at 40 °C: 229 l

    Temperature setting range: 35-82 °C

    Max. flow rate: 18 l/min

    Height: 1445 mm

    Width: 510 mm

    Depth: 510 mm

    Show all

    Download as PDF

    Equipment datasheet

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
