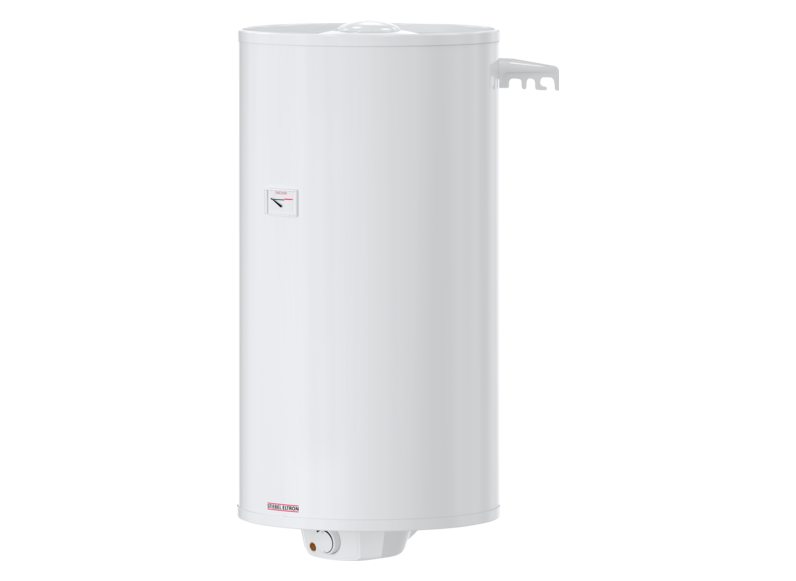

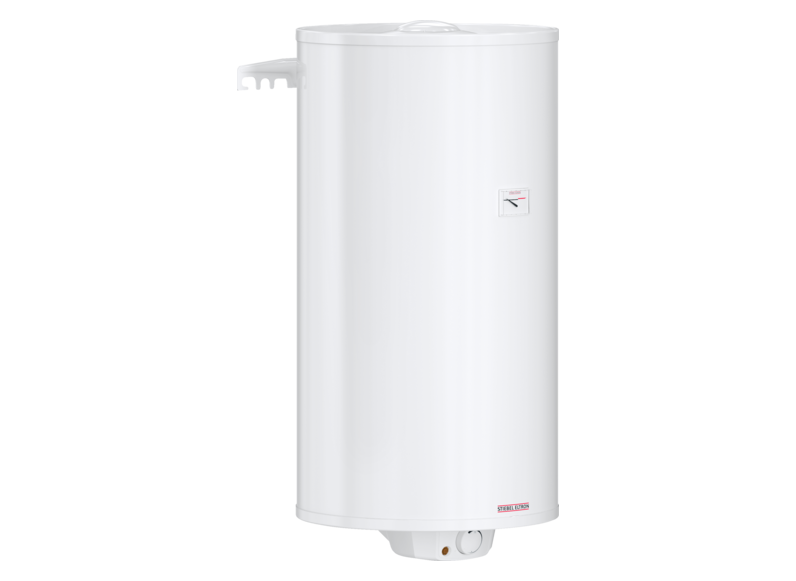

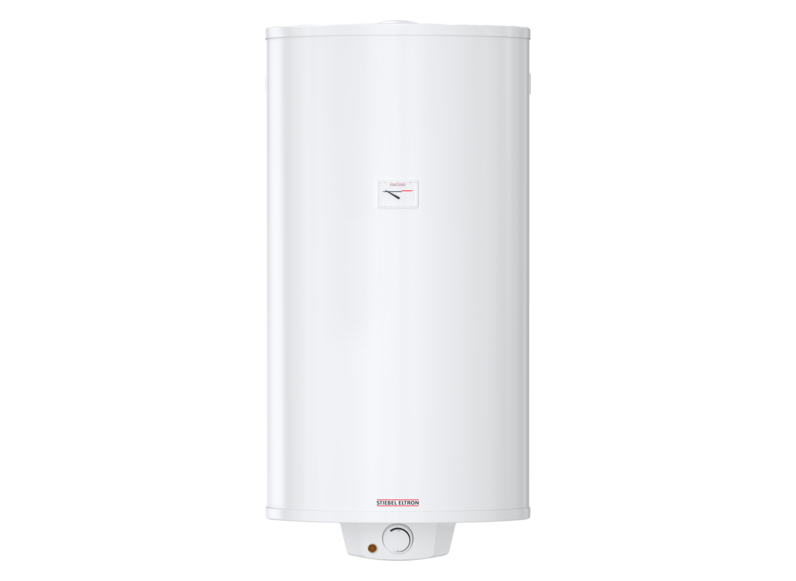

Wall mounted cylinder
PSH 100 Classic

  • 360°
    • Hydraulically controlled wall mounted cylinder
    • High grade thermal insulation
    • Variable temperature selection in the range of 30-70 °C
    • Temperature curve display for visual check of the water temperature
    • Frost protection integrated in the DHW cylinder
    Questions about the product Get contact

    Product details

    Variable selection of your preferred temperature

    A wall mounted cylinder for greater challenges: this model simultaneously supplies pleasantly hot water to multiple draw-off points in your home – for example, the bathroom and kitchen. Greater comfort and convenience for you all round.

    Highly intuitive operation

    Simply set your preferred temperature using the rotary selector on the front of the wall mounted cylinder. Variable selection is possible from 30 °C to 70 °C, ensuring the ideal water temperature for every demand. Hardly any heat is lost thanks to the high grade insulation.


    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 235962

    Connected load ~ 230 V: 1.8 kW

    Power supply: 1/N/PE

    Rated voltage: 220-240 V

    Frequency: 50/60 Hz

    Load profile: L

    Energy efficiency class: C

    Standby energy consumption/24 h at 65 °C: 1.47 kWh

    Nominal capacity: 100 l

    Mixed water amount at 40 °C: 168 l

    Temperature setting range: 30-70 °C

    Max. flow rate: 23.5 l/min

    Height: 964 mm

    Width: 475 mm

    Depth: 483 mm

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
