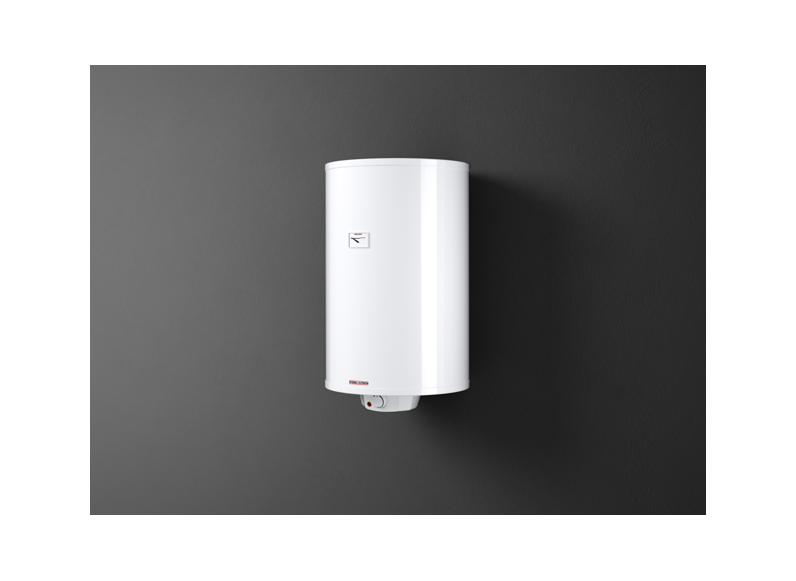

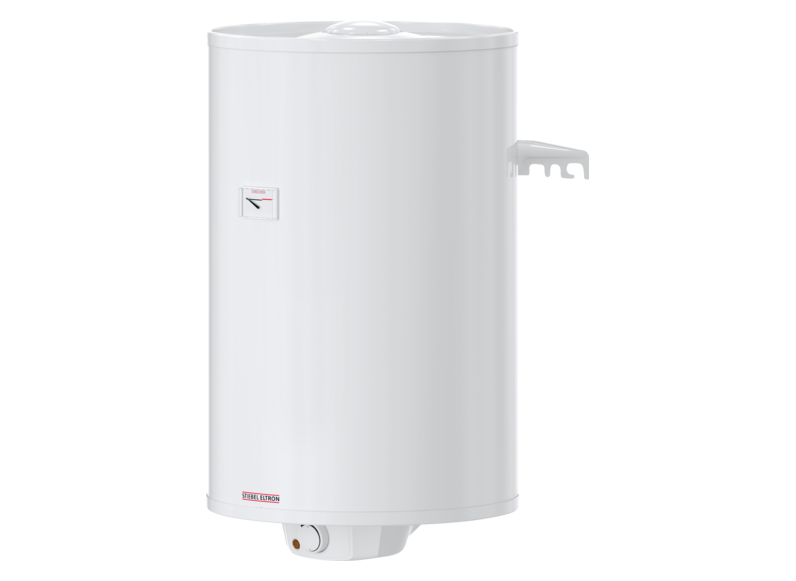

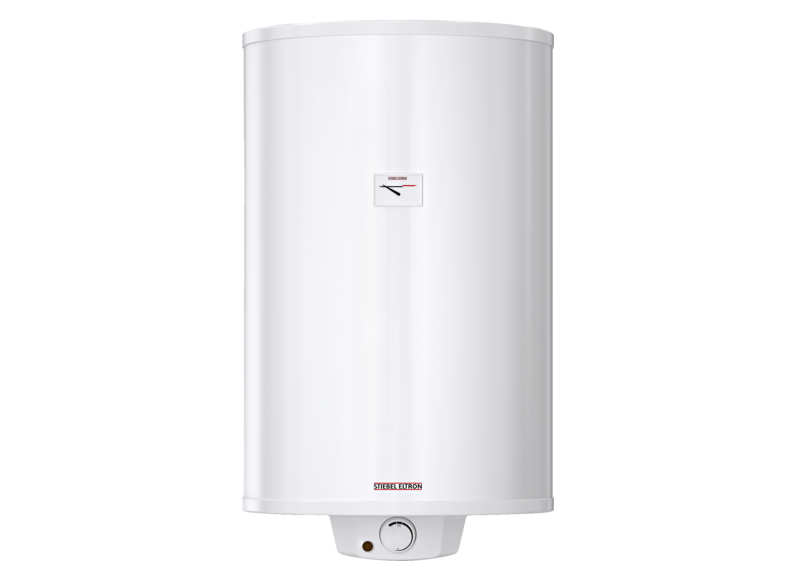

Wall mounted cylinder
PSH 80 Classic

  • Product details

    Variable selection of your preferred temperature

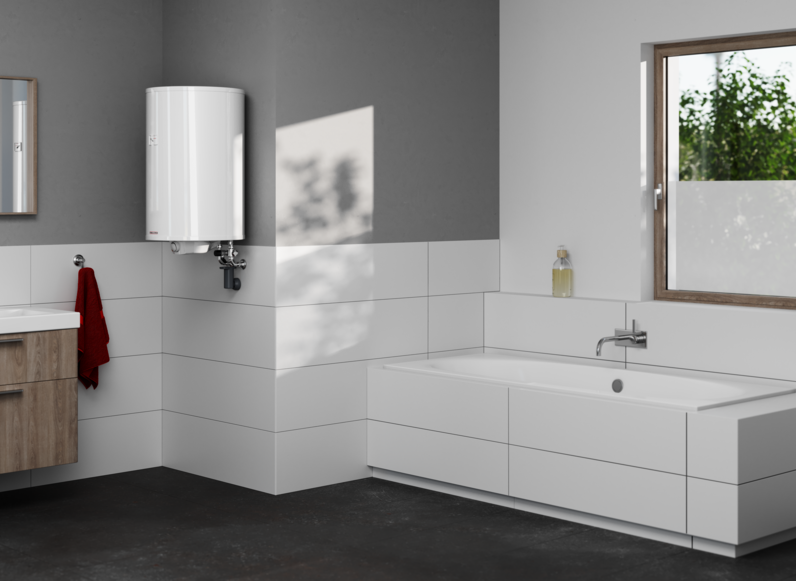

    A wall mounted cylinder for greater challenges: this model simultaneously supplies pleasantly hot water to multiple draw-off points in your home – for example, the bathroom and kitchen. Greater comfort and convenience for you all round.

    Highly intuitive operation

    Simply set your preferred temperature using the rotary selector on the front of the wall mounted cylinder. Variable selection is possible from 30 °C to 70 °C, ensuring the ideal water temperature for every demand. Hardly any heat is lost thanks to the high grade insulation.



    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 235961

    Connected load ~ 230 V: 1.8 kW

    Power supply: 1/N/PE

    Rated voltage: 220-240 V

    Frequency: 50/60 Hz

    Load profile: M

    Energy efficiency class: C

    Standby energy consumption/24 h at 65 °C: 1.22 kWh

    Nominal capacity: 80 l

    Mixed water amount at 40 °C: 125 l

    Temperature setting range: 30-70 °C

    Max. flow rate: 23.5 l/min

    Height: 810 mm

    Width: 475 mm

    Depth: 483 mm
