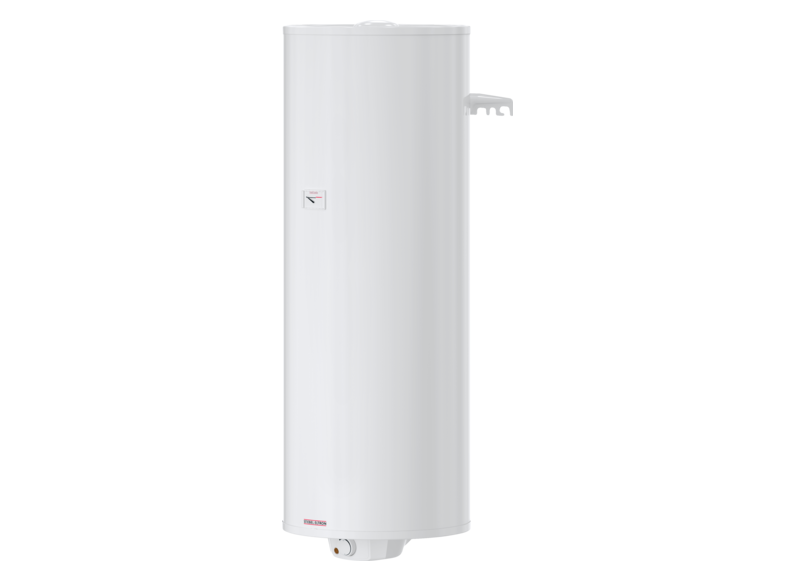

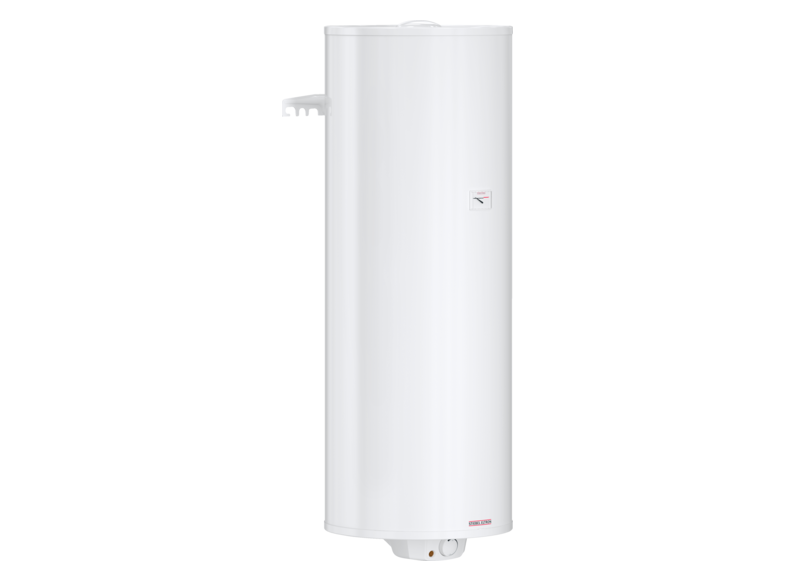

Wall mounted cylinder
PSH 150 Classic

  • Product details

    Variable selection of your preferred temperature

    A wall mounted cylinder for greater challenges:
    this model simultaneously supplies pleasantly hot water to multiple draw-off points in your home – for example, the bathroom and kitchen. Greater comfort and convenience for you all round.

    Highly intuitive operation

    Simply set your preferred temperature using the
    rotary selector on the front of the wall mounted cylinder. Variable selection is possible from 30 °C to 70 °C, ensuring the ideal DHW temperature for every situation. Hardly any heat is lost thanks to the high grade insulation.



    ERP product datasheet

    Technical datasheet

    Product Number: 235964

    Connected load ~ 230 V: 1.8 kW

    Power supply: 1/N/PE

    Rated voltage: 220-240 V

    Frequency: 50/60 Hz

    Load profile: L

    Standby energy consumption/ 24 h at 65 °C: 2.05 kWh

    Nominal capacity: 150 l

    Mixed water volume 40 °C: 270 l

    Temperature setting range: 30-70 °C

    Max. flow rate: 23.5 l/min

    Height: 1349 mm

    Width: 475 mm

    Depth: 483 mm
