Taps
DCE 11/13 H + MEKD

  • Product details

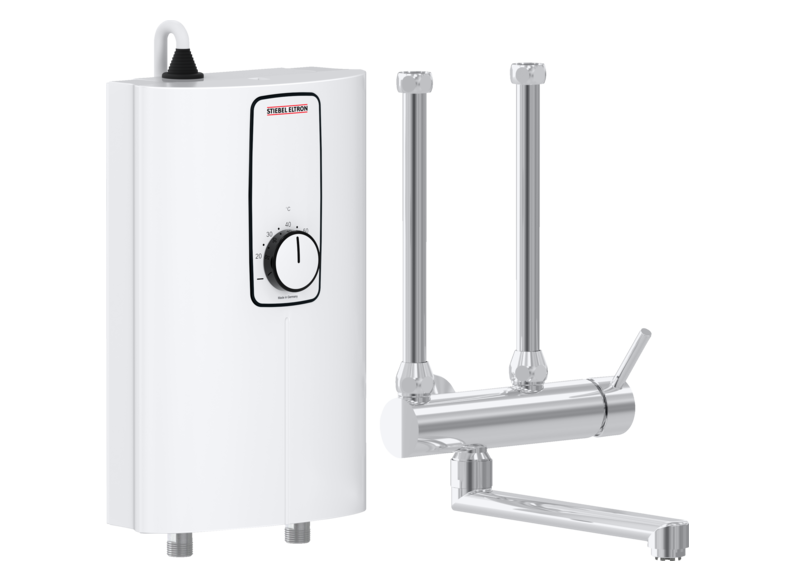

    This set comprises a compact instantaneous water heater and a pressure-tested mono lever wall mounted tap, providing the perfect combination for kitchen or washroom.



    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 232794

    Rated voltage: 400 V

    Rated voltage 1: 380 V

    Rated voltage 2: 400 V

    Rated voltage 3: 415 V

    Rated output: 11.2/13.5 kW

    Rated output 1: 10.1/12.2 kW

    Rated output 2: 11.2/13.5 kW

    Rated output 3: 12.1/14.5 kW

    Rated current: 18.7/19.5 A

    Rated current 1: 17.8/18.5 A

    Rated current 2: 18.7/19.5 A

    Rated current 3: 19.4/20.2 A

    Fuse protection: 16/20 A

    Fuse protection 1: 16/20 A

    Fuse protection 2: 16/20 A

    Fuse protection 3: 20/20 A

    Frequency: 50/60 Hz

    Frequency 1: 50/60 Hz

    Frequency 2: 50/60 Hz

    Frequency 3: 50/- Hz

    Phases: 3/PE

    IP rating: IP 24

    Temperature setting: 20-60 °C

    Colour: white

    Height: 293 mm

    Width: 188 mm

    Depth: 99 mm

    Weight: 2.20 kg
