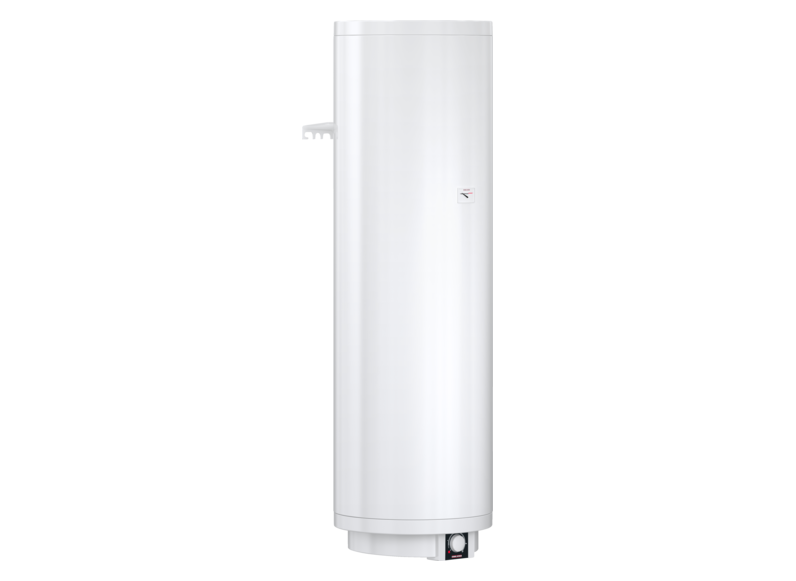

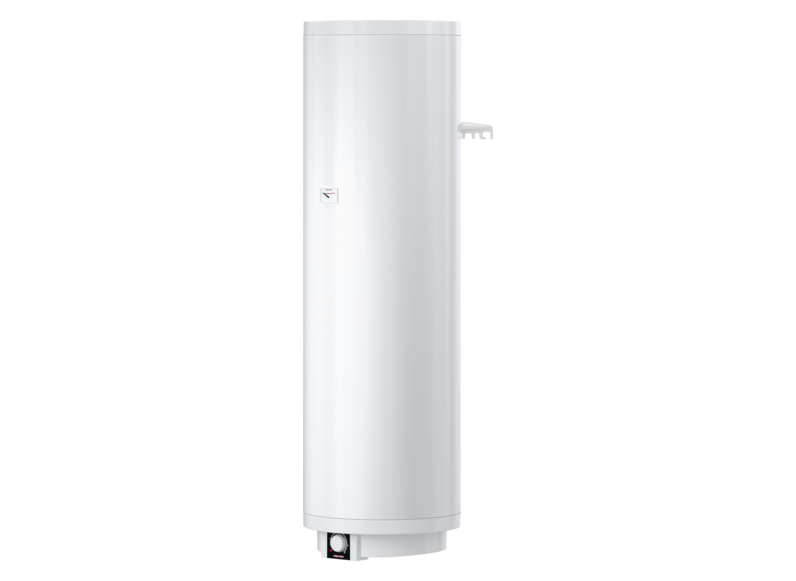

Wall mounted cylinder
PSH 200 Trend

  • Product details

    Comfort meets elegance

    Hot water is something you need many times over throughout the day. It is always available to you with this wall mounted cylinder. This is because the appliance is equipped with an automatic reheating function.

    Wide choice of temperature settings

    You can choose any temperature between 30 °C and 75 °C. With its elegant, rounded design, the appliance also makes a statement in terms of appearance.



    ERP product datasheet
    Technical datasheet

    Product Number: 232086

    Connected load ~ 230 V: 2 kW

    Power supply: 1/N/PE 220-240 V 50/60 Hz

    Rated voltage: 220-240 V

    Frequency: 50/60 Hz

    Load profile: XL

    Energy efficiency class: C

    Standby energy consumption/24 h at 65 °C: 1.61 kWh

    Nominal capacity: 192 l

    Mixed water amount at 40 °C: 351 l

    Temperature setting range: 30-75 °C

    Max. flow rate: 23.5 l/min

    Height: 1715 mm

    Width: 510 mm

    Depth: 520 mm
