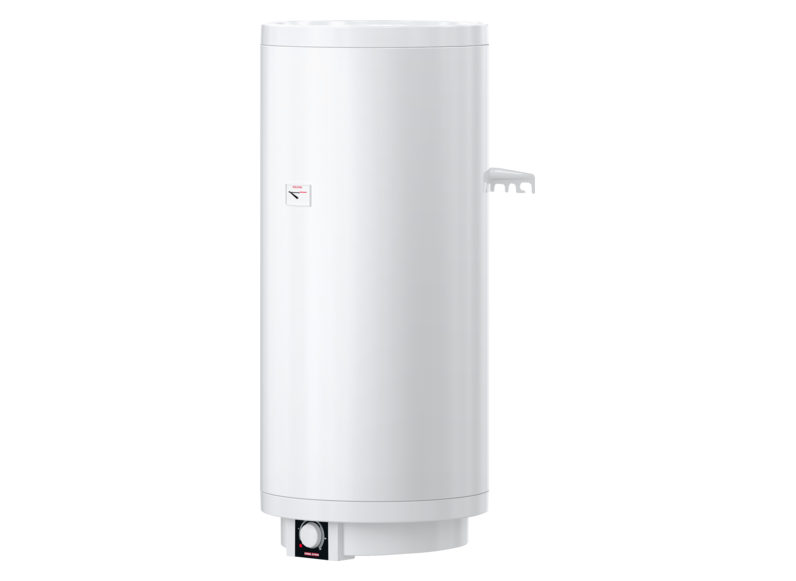

Wall mounted cylinder
PSH 120 Trend

  • 360°
    • Hydraulically controlled wall mounted cylinder
    • Elegant, rounded design
    • Variable temperature selection in the range of 30-75 °C
    • Exceptionally high grade thermal insulation
    • Long service life thanks to special enamel coating on the inside
    Questions about the product Get contact

    Product details

    Comfort meets elegance

    Hot water is something you need many times over throughout the day. It is always available to you with this wall mounted cylinder. This is because the appliance is equipped with an automatic reheating function.

    Wide choice of temperature settings

    You can choose any temperature between 30 °C and 75 °C – the cylinder can meet every demand, from lukewarm to hot. With its elegant, rounded design, the appliance also makes a statement in terms of appearance.


    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 232084

    Connected load ~ 230 V: 2 kW

    Power supply: 1/N/PE 220-240 V 50/60 Hz

    Rated voltage: 220-240 V

    Frequency: 50/60 Hz

    Load profile: L

    Energy efficiency class (A+ → F): C

    Standby energy consumption/24 h at 65 °C: 1.15 kWh

    Nominal capacity: 120 l

    Mixed water amount at 40 °C: 224 l

    Temperature setting range: 30-75 °C

    Max. flow rate: 23.5 l/min

    Height: 1178 mm

    Width: 510 mm

    Depth: 520 mm

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
