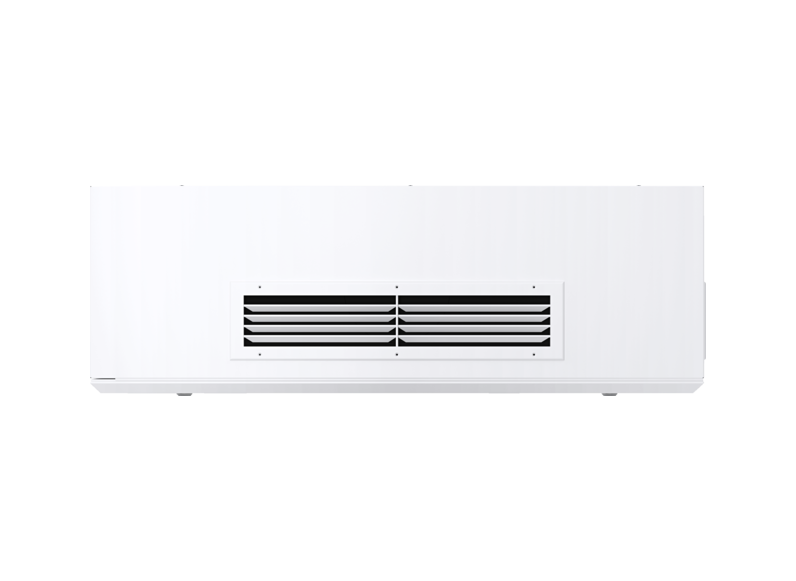

VRL-C 300 G Premium
Questions about the product Get contact
- High degree of heat recovery due to aluminium cross-countercurrent heat exchanger
- The supply and discharge air grilles can be adjusted to optimise air flow
- Easily installed in the ceiling thanks to the matching rail system
- Easy maintenance as the casing cover pivots open
- Flexible installation, with choice of flush or surface installation on ceiling
- Decentralised ventilation unit with heat recovery for schools, nurseries, seminar, therapy and club facilities, offices, community halls
- Integral preheater coil
- Very quick and easy installation, even in modernisation projects
Application • Typical applications include controlled ventilation of larger spaces such as classrooms, conference rooms, sales showrooms, nurseries, restaurants and other function rooms. • The automated room ventilation improves the quality of the indoor air and reduces the level of CO2, aerosols, spores and dirt, thanks to the integral filters and heat recovery. At the same time, the high rate of air exchange reduces smells, bacteria and viruses in the indoor air. • The appliances are optimised for low-noise operation and are designed for decentralised usage directly at the point of use. Air ducting is required for routing the outdoor and exhaust air. Extract and supply air is routed directly through the grille diffusers on the appliance.
Convenience features • Operating modes, programs and parameters can be adjusted simply and intuitively on the programming unit. The appliances are designed for straightforward and rapid servicing and are easy to maintain. An additional sensor (accessory) measures the CO2 concentration in the indoor air and provides fully automatic control of the appliance's ventilation output until the CO2 falls below the set level again. With the aid of a movement sensor (accessory), the appliance can switch between basic ventilation and a higher level. The temperature-dependent bypass automatically circumvents heat recovery when necessary. All the appliances are fitted with an electric preheating coil and can be used even when outdoor temperatures are very low with balanced supply and extract air flow rates. • The equipment is fitted with motorised outdoor/exhaust air flaps to prevent uncontrolled flow of air in standby. • In the case of fire or loss of power, the spring-loaded outdoor/exhaust air flaps seal the airways, which helps reduce the spread of fire or flue gas through the building. • In larger buildings, up to 20 appliances can be linked and controlled using a single programming unit. The appliances are connected to a higher ranking building management system via BACnet, Modbus or LON interface (accessories).
Installation • The appliance is designed for ceiling installation and can be built into a suspended ceiling. It can be installed in different places on the ceiling. • The supply air grille with adjustable air flow direction is located on the front of the appliance. • The extract air is sucked in through a grille on the right of the narrow side.
Efficiency • Energy saving EC fans, in conjunction with the control unit and other sensors, ensure efficient operation.
Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
