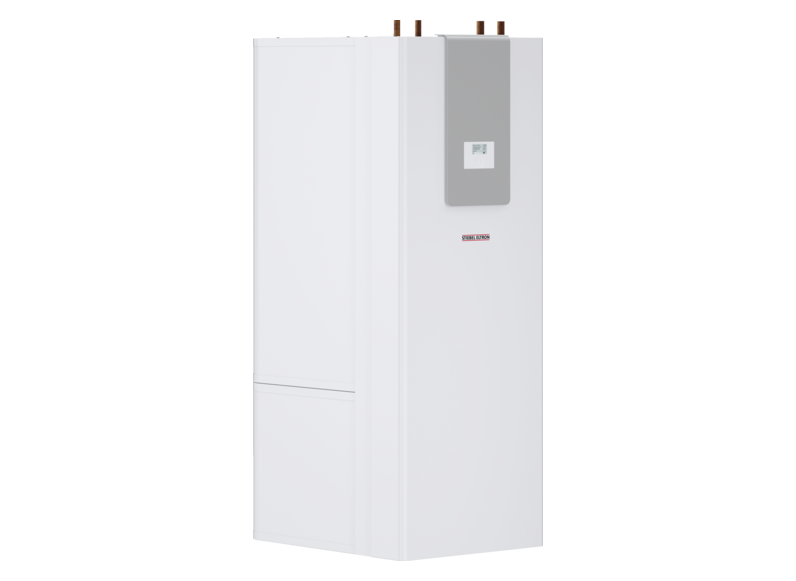

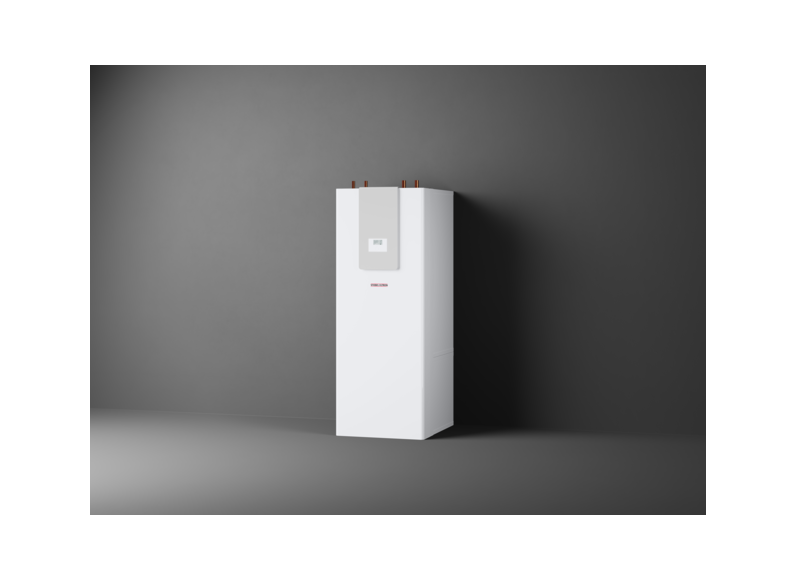

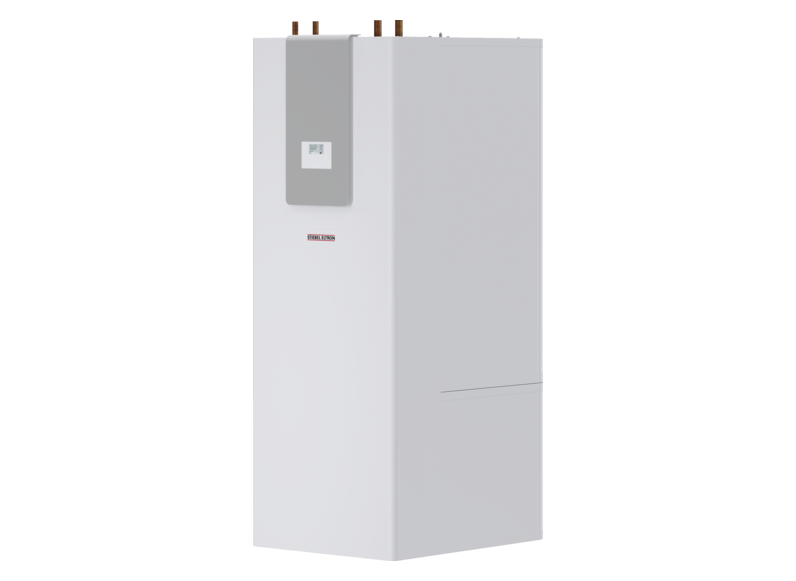

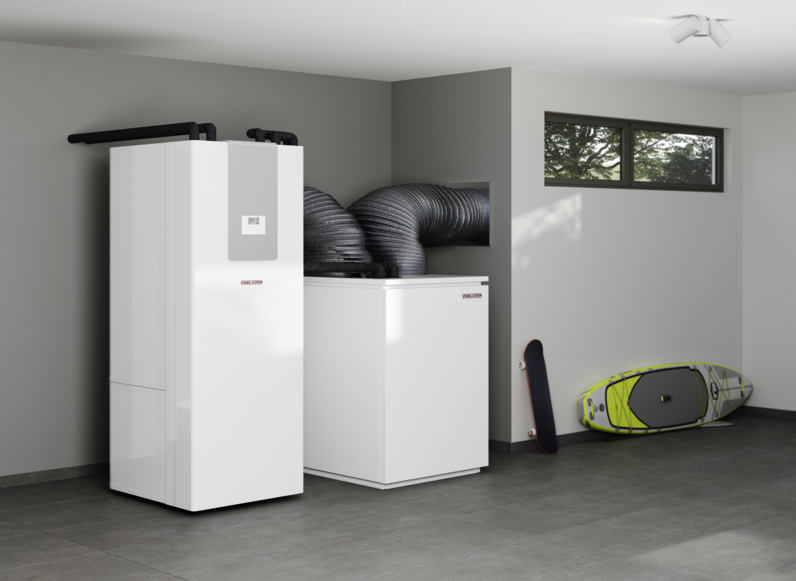

Integral cylinder
HSBC 300 cool

  • Product details

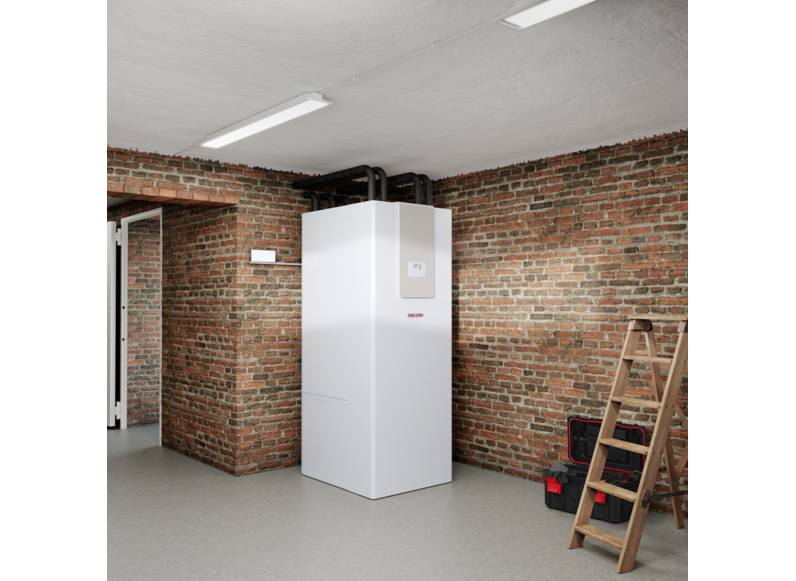

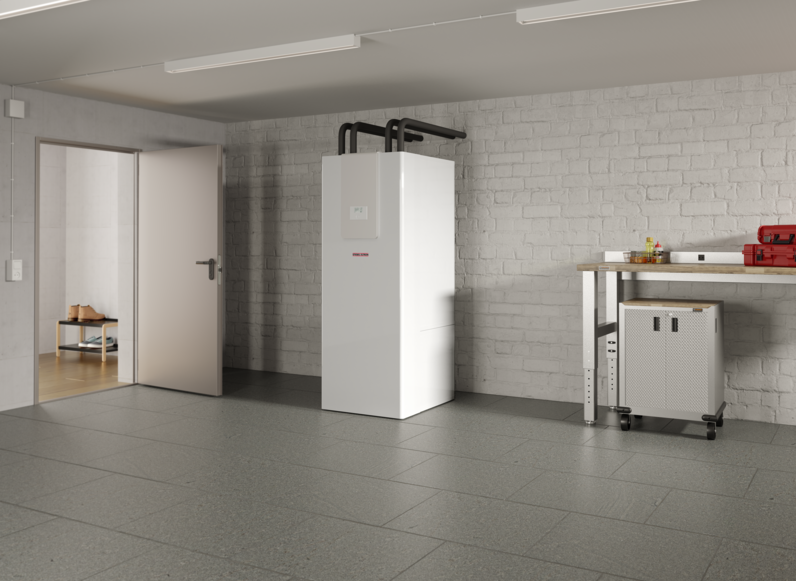

    Save a good deal of space

    When it comes to accommodating multiple functions in a space saving design, this integral cylinder is far ahead of the pack. There’s no need to install two cylinders next to one another – instead, you can use a single unit that has the DHW cylinder and the buffer cylinder arranged one on top of the other. As a result, you only need half as much installation space.

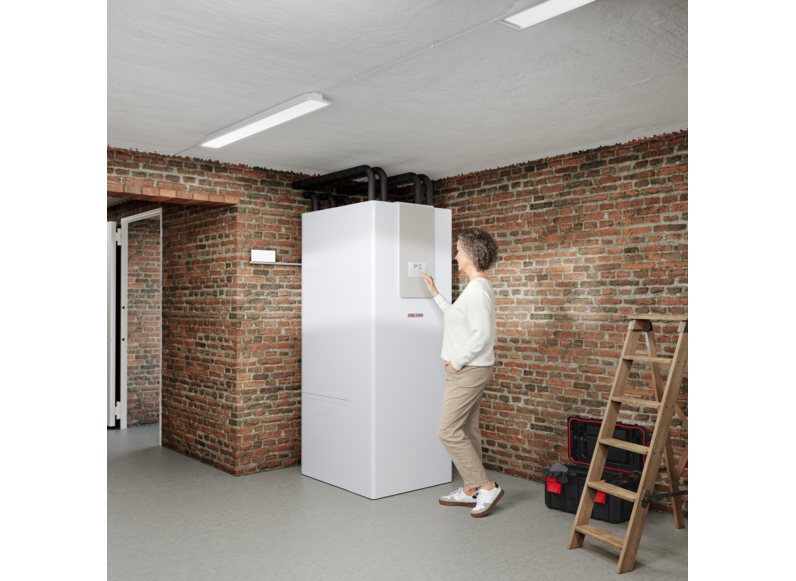

    Control the system with ease

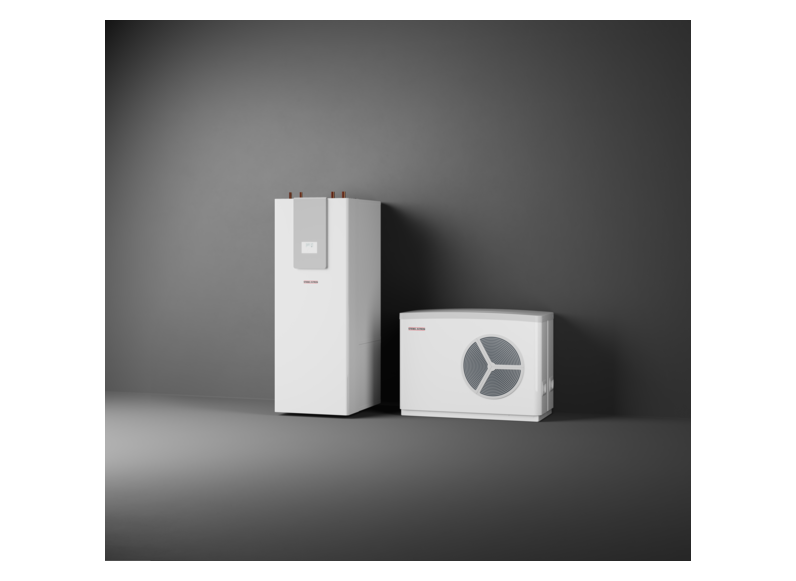

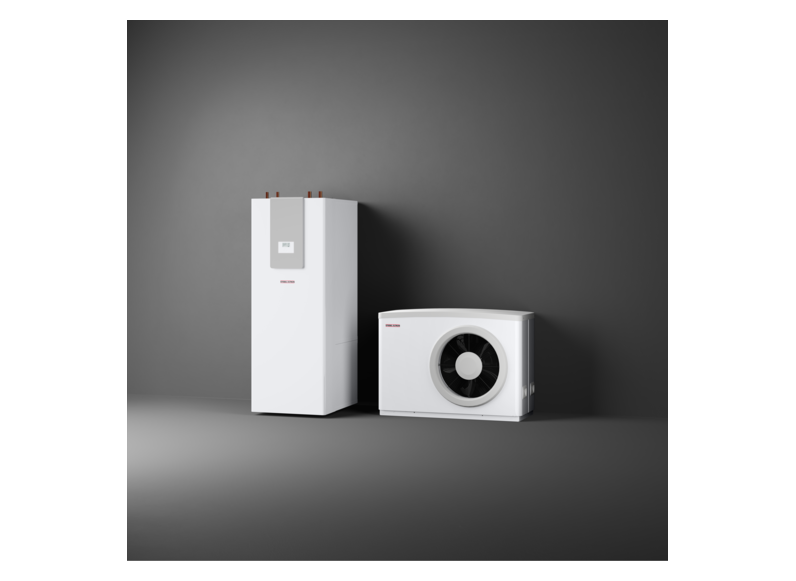

    We have carefully matched both versions of this integral cylinder so that they can be used in a home in conjunction with one of our heat pumps. Plus, with the heat pump manager (WPM) built in, controlling your appliances couldn’t be easier.



    Reach-Information
    Technical datasheet

    Product Number: 203801

    Standby energy consumption/ 24 h at 65 °C: 1.50 kWh

    Nominal capacity, DHW cylinder: 270 l

    Nominal capacity, buffer cylinder: 100 l

    Surface area, heat exchanger: 3.20 m²

    Height: 1918 mm

    Width: 680 mm

    Depth: 910 mm

    Height when tilted: 2123 mm

    Weight: 250 kg
