Air source heat pumps

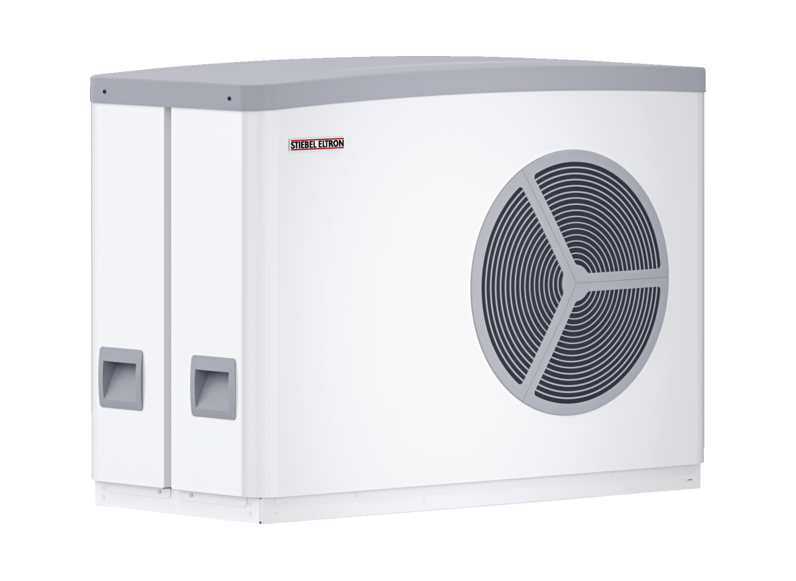

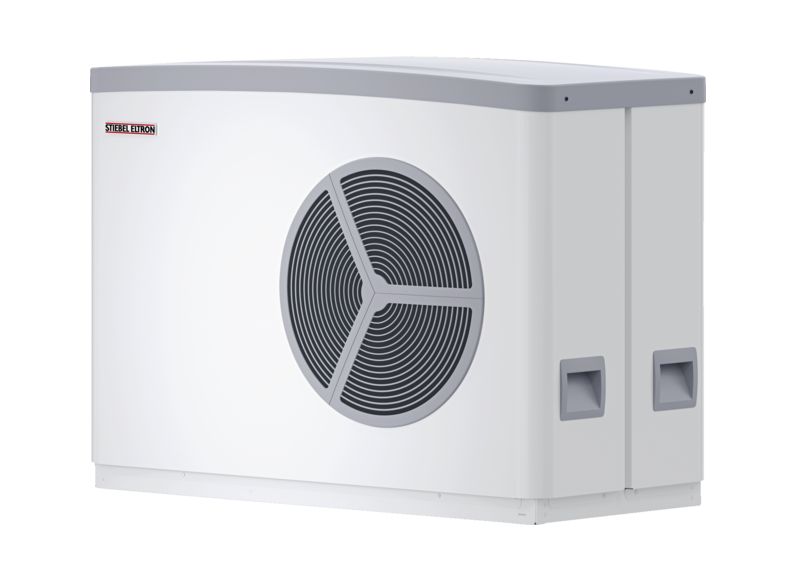

HPA-O 05.1/07.1 CS Premium

  • HPA-O 05.1 CS Premium
    • Air source heat pump installed outdoors for heating and cooling
    • Inverter technology for high efficiency and low energy bills
    • Low noise emissions due to intelligent appliance design
    • Operating noise can be further reduced in night mode ("silent mode")
    • Highest energy efficiency even when using radiators
    • Optional integration into the home network and control via smartphone (additional components required)
    • Flow temperatures of up to 75 °C for first rate hot water convenience

    Select other variants

    Heating output at A-7/W35 (EN 14511)

    4.97  kW

    6.87  kW
    Questions about the product Get contact
    award

    Product details

    Create a pleasant climate all round

    This air source heat pump doesn't just take care of your heating and hot water. In the summer months, it can also provide cooling. And even at outside temperatures as low as -25 °C, it achieves high flow temperatures to ensure cosy warmth in your rooms and high hot water convenience. This inverter appliance therefore offers you a valuable service, no matter whether you are building a new home or modernising an older one.

    Convenience at home

    Even in older buildings, this heat pump provides cosy warmth via your existing radiators. You also benefit from low noise development thanks to the sophisticated design and the "silent mode" function that can be activated.


    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 202666

    SCOP 35 °C (EN 14825): 4.70

    Energy efficiency class, room heating in moderate climates, average temperature applications (A+++ → D): A+++

    Heating output at A2/W35 (EN 14511): 3.19 kW

    Heating output at A-7/W35 (EN 14511): 4.97 kW

    Cooling capacity at A35/W18: 6.86 kW

    COP at A2/W35 (EN 14511): 4.60

    COP at A-7/W35 (EN 14511): 3.45

    Energy efficiency ratio at A35/W18: 3.84

    Sound power level (EN 12102): 48 dB(A)

    Min./max. application limits for heat source: -25/40 °C

    Min. application limit on heating side: 15 °C

    Max. application limit on the heating side: 75 °C

    Height: 900 mm

    Width: 1270 mm

    Depth: 593 mm

    Weight: 135 kg

    Refrigerant: R454C

    Colour: white

    Show all

    Download as PDF

    Equipment datasheet

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
