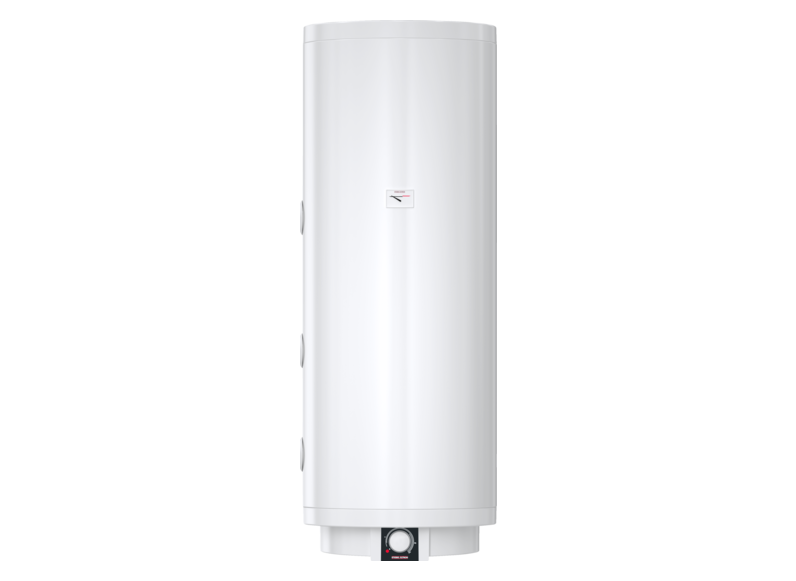

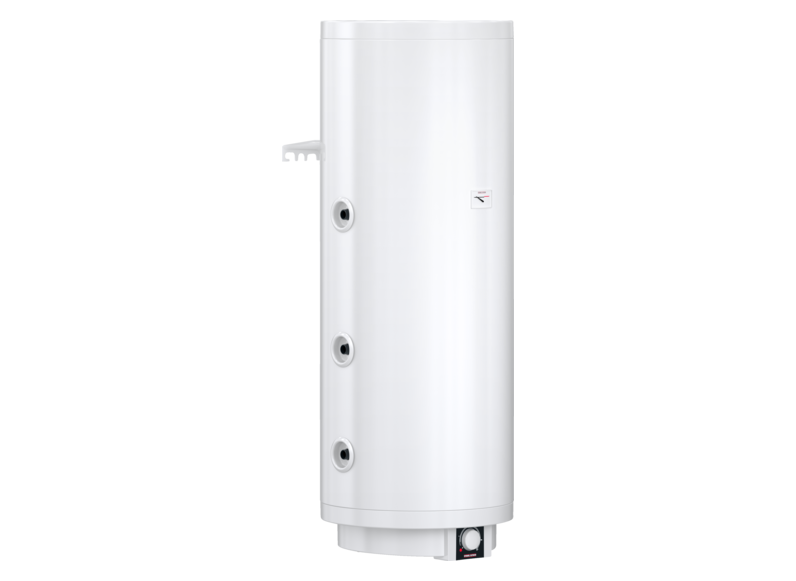

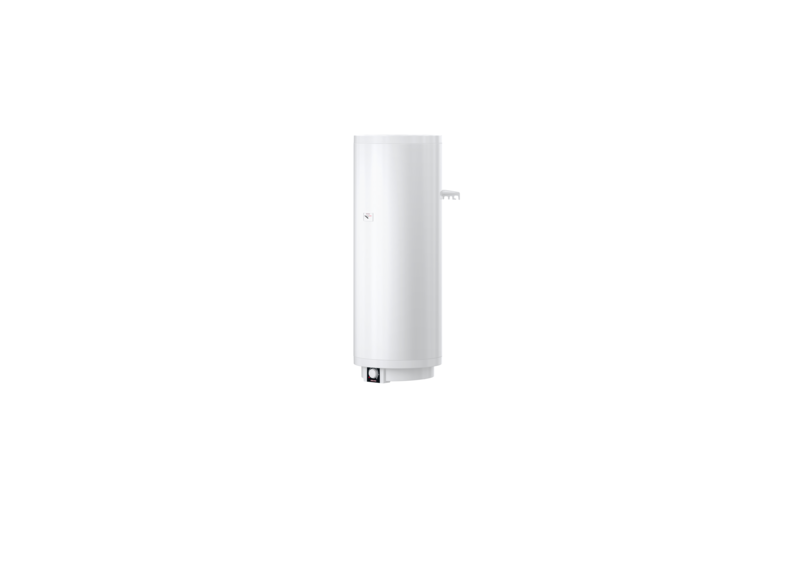

Wall mounted cylinder
PSH 150 WE-L
Questions about the product Get contact
- Hydraulically controlled wall mounted cylinder
- Variable temperature selection in the range of 5-80 °C
- Low energy losses thanks to high grade thermal insulation
- Special enamel coating for a long service life
Application • These vertical wall mounted combi cylinders supply DHW to multiple draw-off points, e.g. individual and group supply to the bathroom and kitchen. The wall mounted combi cylinders are equipped with a stainless steel electric tubular heater. A tubular indirect coil is also integrated, for example for connecting the wall mounted cylinder to a central heating system. • The pressure-tested, sealed unvented appliance is suitable for all commercially available pressure taps. • It is also suitable for non-pressurised use to supply one draw-off point.
Convenience features • The temperature can be variably adjusted and heat-up operation is visually indicated. • The current water temperature can be checked using the temperature curve display.
Efficiency • The high grade thermal insulation ensures low energy losses. • Particularly economical operation is possible if the integral cylinder is connected to the heating system via the built-in tubular indirect coil. • Design for recycling allows environmentally responsible sorting of the various components.
Installation • Recessed grips on the appliance ensure safe handling. • Straightforward replacement of all standard wall mounted cylinders. The universal wall mounting bracket ensures quick and easy installation. • The integral cylinder can be installed in systems with plastic, copper or stainless steel pipework. • The flanged immersion heater is easy to remove and is equipped with a second sensor well for external control of the heat generator. The large flanged aperture enables convenient descaling. • The DHW circulation connection increases DHW convenience in longer pipe networks. • The connection to the tubular indirect coil is on the left or right, depending on the model.
Safety • The high grade magnesium anode and the steel inner cylinder with special "anticor" directly applied enamel coating protect against corrosion. • Automatic frost protection monitors the water temperature and prevents the cylinder from freezing at low temperatures.
Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
