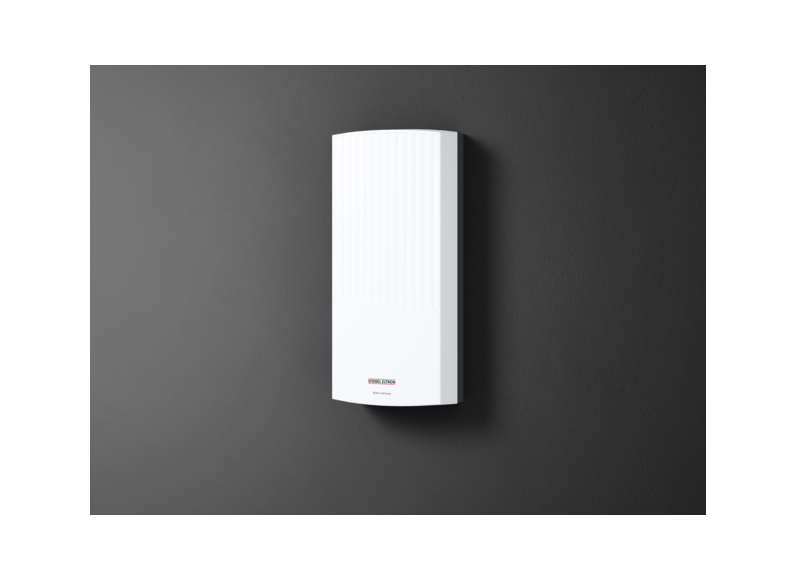

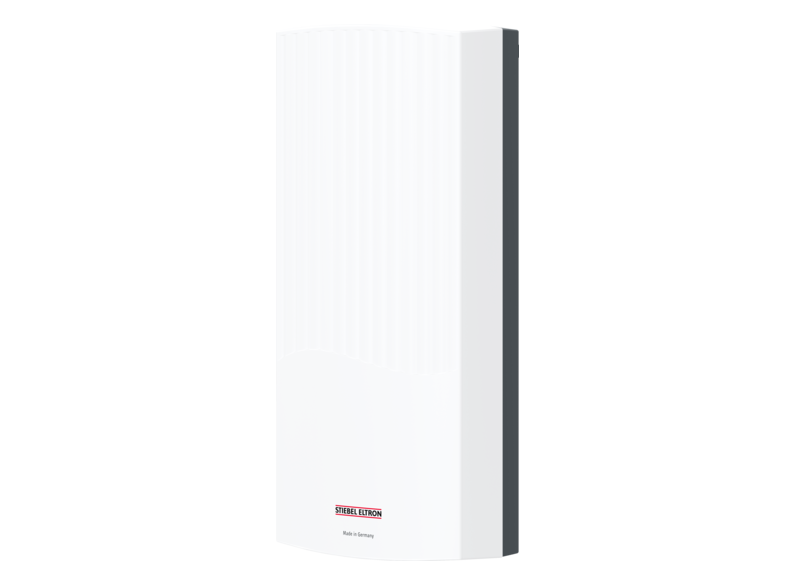

Comfort instantaneous water heaters
PEB

  • PEB 18/21/24
    • Stable preferred temperature through electronic open-loop control with 2i technology
    • Ideal replacement for hydraulic instantaneous water heaters
    • Sufficient hot water for multiple draw-off points
    • Individual temperature adjustment through mixing with cold water
    • Constant DHW temperature of 55 °C thanks to 2i technology

    Select other variants

    Rated output

    11  kW

    18/21/24  kW
    Questions about the product Get contact

    Product details

    Simply economical

    This electronic instantaneous water heater fits anywhere and offers significantly greater hot water convenience, particularly when compared with hydraulic appliances. It supplies several draw-off points with ease, meaning that it can be installed in either the kitchen or the bathroom. The individual preferred temperature is controlled directly at the tap by mixing in cold water.


    Reach-Information
    Technical datasheet

    Product Number: 206210

    Rated voltage: 400 V

    Rated voltage 1: 380 V

    Rated voltage 2: 400 V

    Rated output: 18/21/24 kW

    Rated output 1: 16,2/19/21,7 kW

    Rated output 2: 18/21/24 kW

    Rated current: 29/31/35 A

    Rated current 1: 27,6/29,5/33,3 A

    Rated current 2: 29/31/35 A

    Fuse protection: 32/32/35 A

    Fuse protection 1: 32/32/35 A

    Fuse protection 2: 32/32/35 A

    Frequency: 50/60 Hz

    Frequency 1: 50/60 Hz

    Frequency 2: 50/60 Hz

    Phases: 3/PE

    IP rating: IP25

    Temperature setting: 55 °C

    Colour: white

    Height: 485 mm

    Width: 226 mm

    Depth: 93 mm

    Weight: 3.50 kg

    Energy efficiency class (A+ → F): A

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
