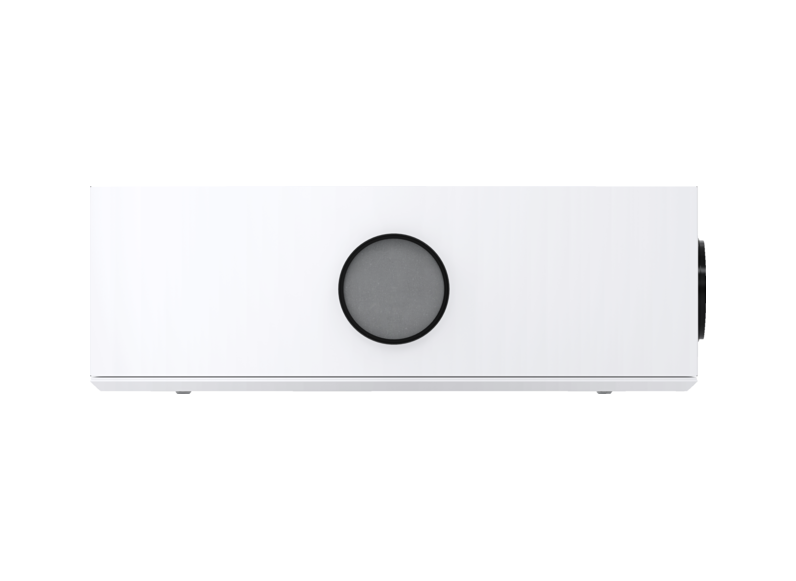

VRL-C 300 D Premium
Questions about the product Get contact
- High degree of heat recovery due to aluminium cross-countercurrent heat exchanger
- Easily installed in the ceiling thanks to the matching rail system
- Easy maintenance as the casing cover pivots open
- Flexible installation, with choice of flush or surface installation on ceiling
- Decentralised ventilation unit with heat recovery for schools, nurseries, seminar, therapy and club facilities, offices, community halls
- Integral preheater coil
- Connector for air duct
- Very quick and easy installation, even in modernisation projects
Application • Typical applications include controlled ventilation of larger spaces such as classrooms, conference rooms, sales showrooms, nurseries, restaurants and other function rooms.• The automated room ventilation improves the quality of the indoor air and reduces the level of CO2, aerosols, spores and dirt, thanks to the integral filters and heat recovery.At the same time, the high rate of air exchange reduces smells, bacteria and viruses in the indoor air.• The appliances are optimised for low-noise operation and are designed for decentralised usage directly at the point of use.• Air ducting is required for routing the outdoor and exhaust air.Extract air and supply air can be channelled to precise points in the room or building.
Convenience features • Operating modes, programs and parameters can be adjusted simply and intuitively on the programming unit.The appliances are designed for straightforward and rapid servicing and are easy to maintain.• An additional sensor (accessory) measures the CO2 concentration in the indoor air and provides fully automatic control of the appliance's ventilation output until the CO2 falls below the set level again.• With the aid of a movement sensor (accessory), the appliance can switch between basic ventilation and a higher level.• The temperature-dependent bypass automatically circumvents heat recovery when necessary.• All the appliances are fitted with an electric preheating coil and can be used even when outdoor temperatures are very low with balanced supply and extract air flow rates.• To prevent uncontrolled air flow when the appliance is on standby, the systems are equipped with motorised outdoor air and exhaust air dampers.• In the case of fire or loss of power, the spring-loaded outdoor/exhaust air flaps seal the airways, which helps reduce the spread of fire or smoke through the building.• In larger buildings, up to 20 appliances can be linked and controlled using a single programming unit.The appliances are connected to a higher ranking building management system via BACnet, Modbus or LON interface (accessories).• The integral PCB allows easy integration of further functions, such as smoke detectors, intermittent ventilation, minimum ventilation, external OFF and control of a hydraulic reheating coil.• The integral reheating coil can raise the supply air temperature to a comfortable level.• Permanent monitoring of the temperature and humidity levels by the intelligent preheating control minimises the use of electrical energy and reduces the required connected load.
Installation • The appliance is designed for ceiling installation and can be built into a suspended ceiling.It can be installed in different places on the ceiling.• The pipe connector for the supply air line is located on the front of the appliance.Extract air is routed via the extract air connector on the right of the narrow side
Efficiency • Energy saving EC fans, in conjunction with the control unit and other sensors, ensure efficient operation.
Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
