Air distribution system

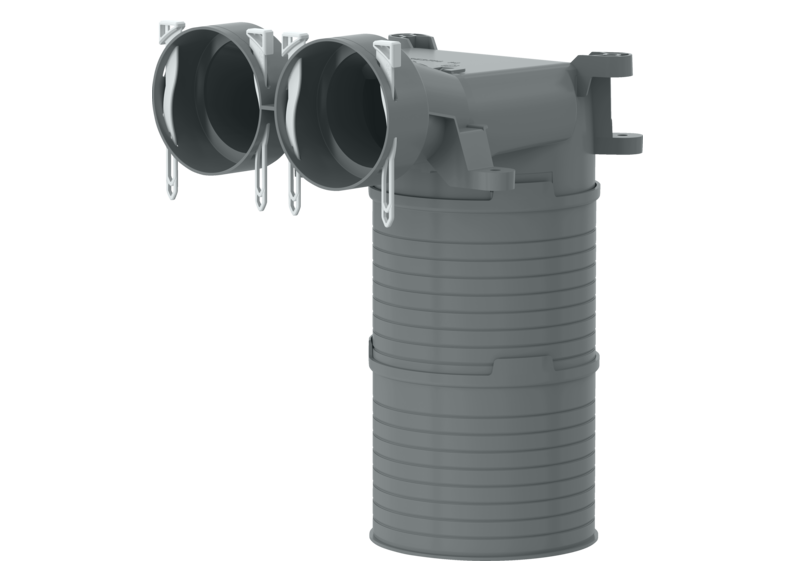

LVS WDA 125-2-75
Description • The wall/ceiling diffuser is made from corrosion-resistant, odour-neutral plastic. It is equipped with a removable connection adaptor that can be rotated 180°. • Two DN 75 connectors are provided; the corresponding LVS pipes are fixed in the adaptor with two locking pins each. • The size of the outlet connector is DN 125. • The large cross-section in the moulded part permits lower flow velocities and makes a higher air flow rate possible. • Standard delivery includes a DN 75 dummy cover, a DN 125 dummy cover and four locking pins.
