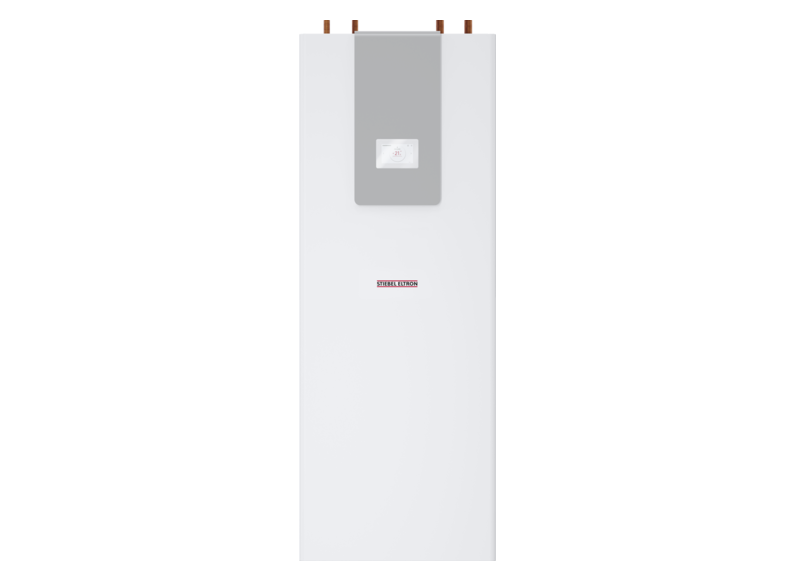

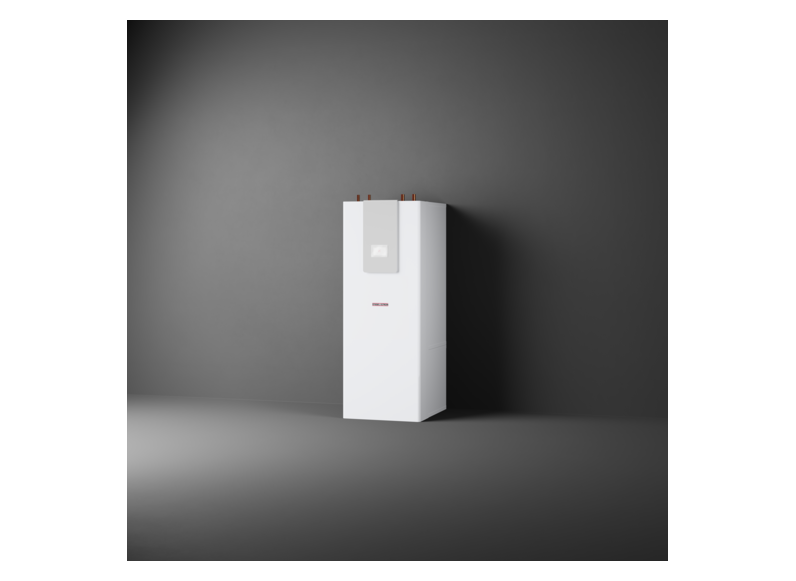

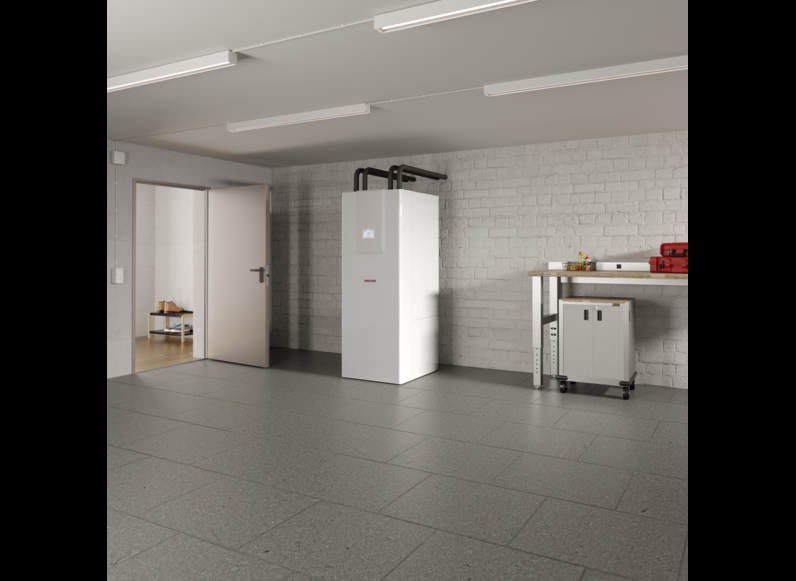

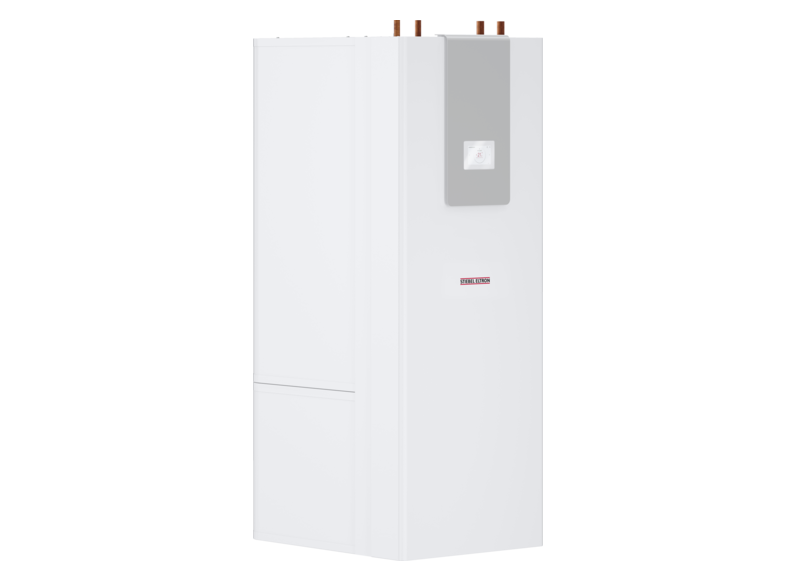

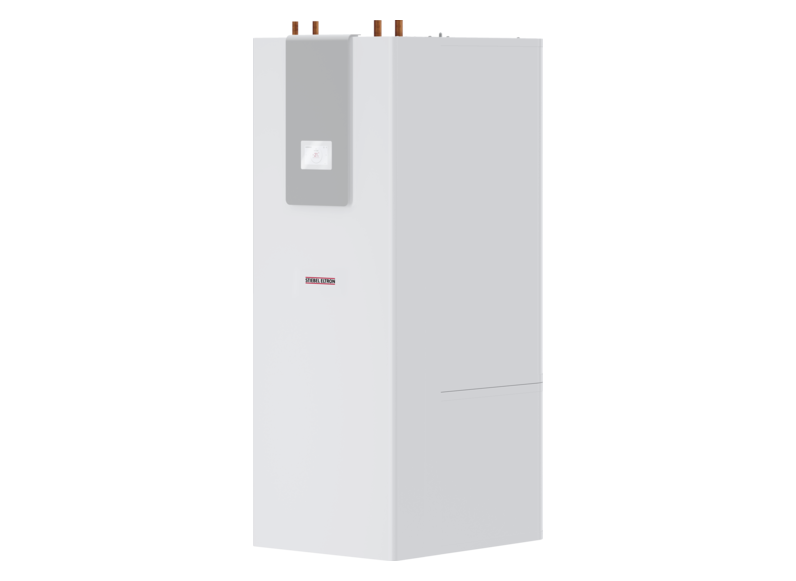

Integral cylinder
HSBC 300.2

  • 360°
    • Combi unit comprising a DHW cylinder and a buffer cylinder
    • Can be integrated into a heating or cooling system
    • High hot water convenience thanks to generous sizing
    • Clear and modern user guidance via full-colour touchscreen
    • Convenient operation via app, even when out and about (additional components required)
    • Halves the installation space required for separate cylinders
    • Connection of two heating circuits possible
    • Hot water cylinder with ${att.sf005378.value} litre capacity and buffer cylinder with 100 litre capacity
    Questions about the product Get contact

    Product details

    Space saving hot water convenience

    When it comes to accommodating multiple functions in a space saving design, this integral cylinder is far ahead of the pack. There's no need to install two cylinders next to one another – instead, you can use a single unit that has the DHW cylinder and the buffer cylinder arranged one on top of the other. As a result, you only need half as much installation space.

    Smart heating control

    We have carefully matched this integral cylinder so that it can be optimally used in a family house in conjunction with one of our heat pumps. You can easily operate your appliances via the full-colour touchscreen display or conveniently via the app, so that nothing stands in the way of cosy warm water, heating energy and pleasant cooling.


    ERP product datasheet
    Technical datasheet

    Product Number: 207447

    Energy efficiency class (A+ → F): B

    Nominal capacity, DHW cylinder: 270 l

    Nominal capacity, buffer cylinder: 100 l

    Surface area, heat exchanger: 3.20 m²

    Height: 1918 mm

    Width: 686 mm

    Depth: 926 mm

    Height when tilted: 2123 mm

    Weight: 250 kg

    Show all

    Download as PDF

    Equipment datasheet

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
