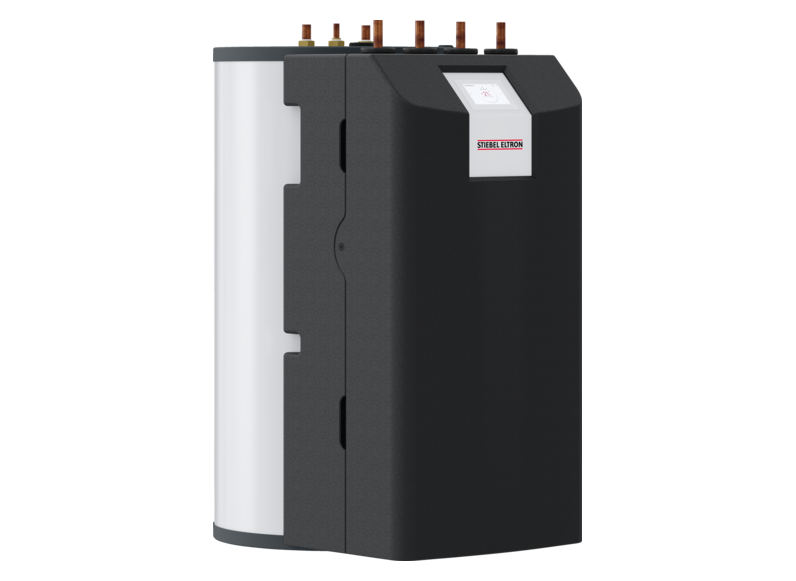

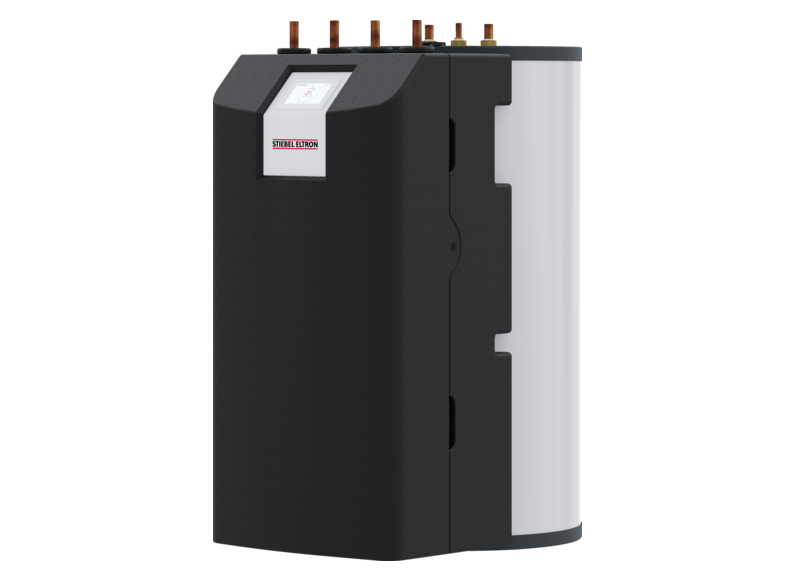

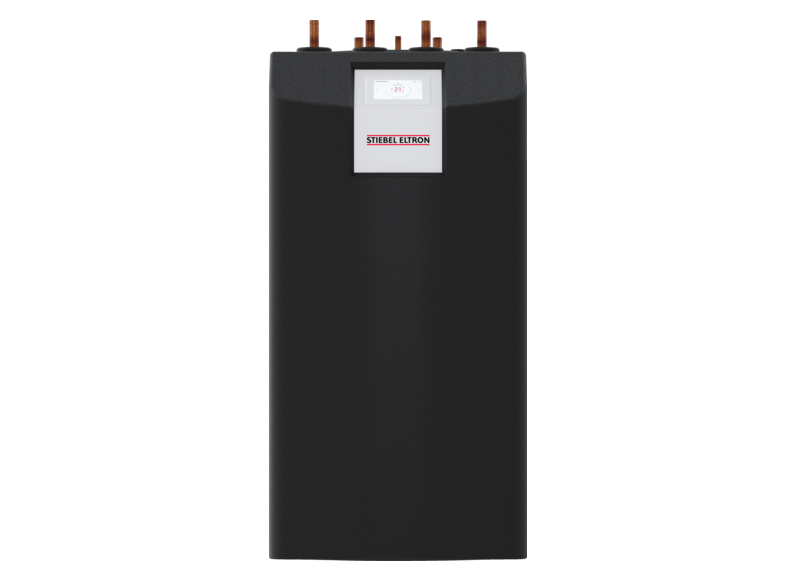

Integral cylinder
HSBB 180.2

  • 360°

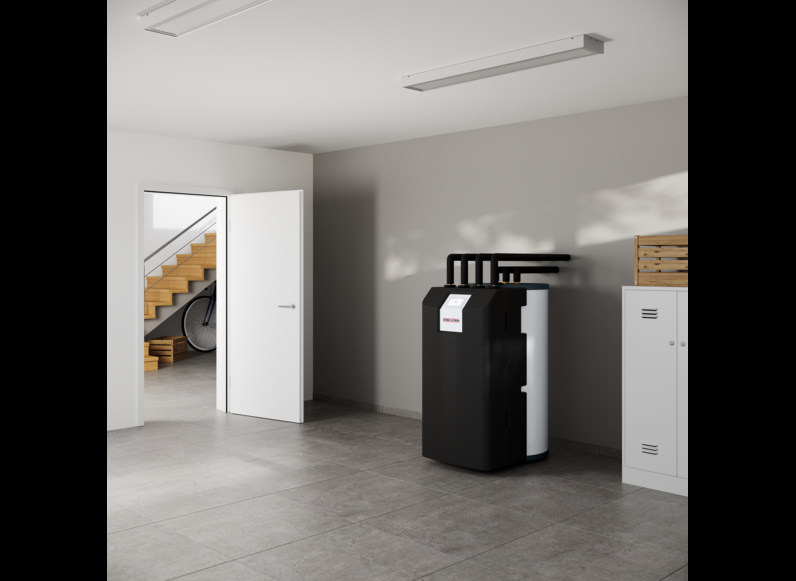

    • Integral cylinder installed indoors for hot water
    • Compact and reliable for use in family houses
    • Can also be used for cooling via underfloor heating system or fan coil units
    • Intuitive and simple operation via touchscreen or app
    Questions about the product Get contact

    Product details

    Form alliances for added convenience

    Are you looking for a cylinder solution for your newly built family house? Then you've come to the right place. Combine this indoor floorstanding hot water cylinder with one of our outdoor heat pumps and enjoy high levels of convenience and cost savings – especially if your home is equipped throughout with underfloor heating. The cylinder integrates all hydraulic components for maximum practicality.

    Skilful adaptation

    When summer comes and it's time to turn the heating off, the cylinder also supports the heat pump cooling function via your underfloor heating system. The minimalist design of the cylinder also helps it to look great in whatever installation room you choose. You can control your preferred temperature with ease via app or touchscreen display.


    ERP product datasheet
    Technical datasheet

    Product Number: 209143

    Energy efficiency class (A+ → F): B

    Nominal capacity, DHW cylinder: 178 l

    Surface area, heat exchanger: 1.59 m²

    Height: 1300 mm

    Width: 605 mm

    Depth: 917 mm

    Height when tilted: 1420 mm

    Weight: 99 kg

    Show all

    Download as PDF

    Equipment datasheet

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
