BGC 2/60

  • Product details

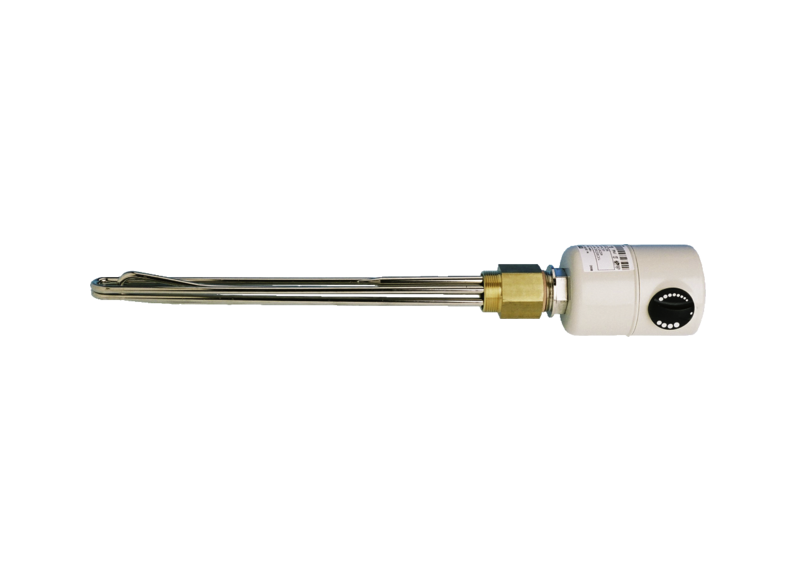

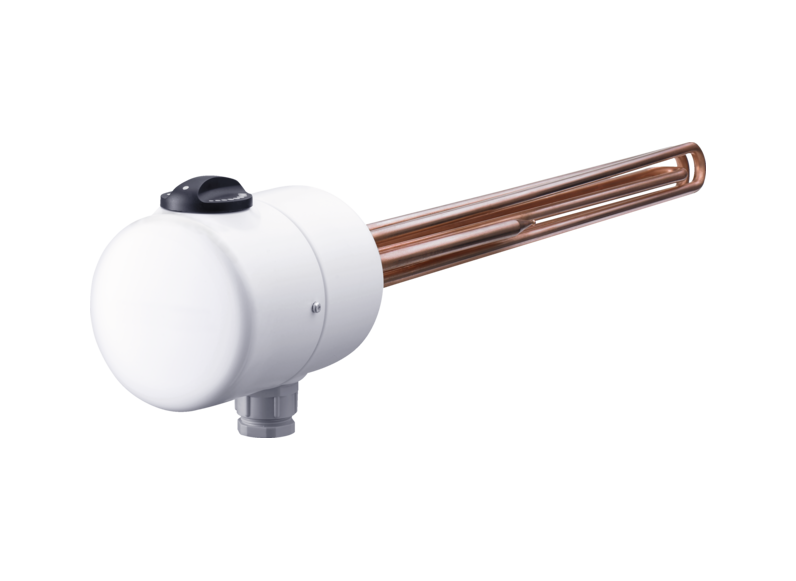

    Threaded immersion heater for sealed unvented heating and DHW heating systems. Variable temperature adjustment from approx. 10 °C to 80 °C. The temperature can be limited to 45/60/80 °C. Integral temperature controller with high limit safety cut-out. Heating element and protective pipe material: copper; threaded connection: brass, thread G 1½ with PTFE gasket.


    Reach-Information
    Technical datasheet

    Product Number: 232030

    Connected load ~ 230 V: 2-5,7 kW

    Connected load ~ 400 V: 6 kW

    Power supply: 1/N/PE, 2/PE, 3/PE

    Rated voltage: 230/400 V

    Frequency: 50/60 Hz

    Version: Universal flange

    IP rating: IP44

    Immersion depth: 480 mm
