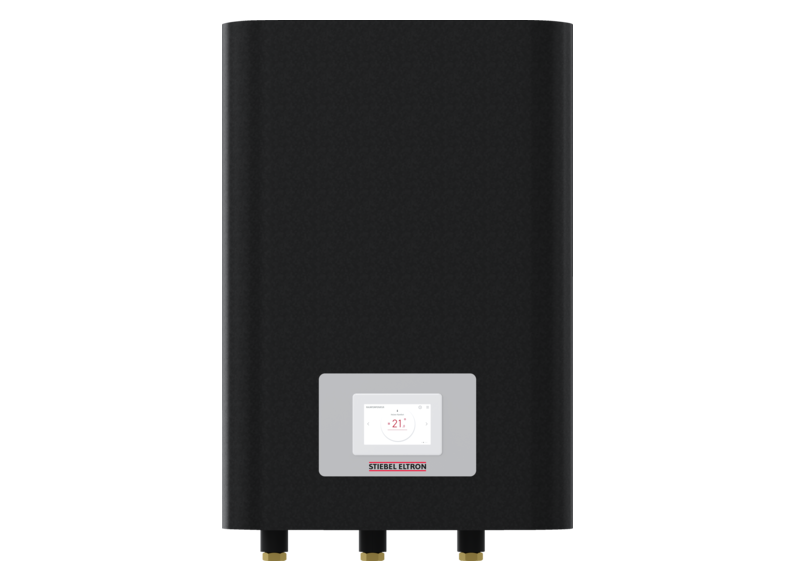

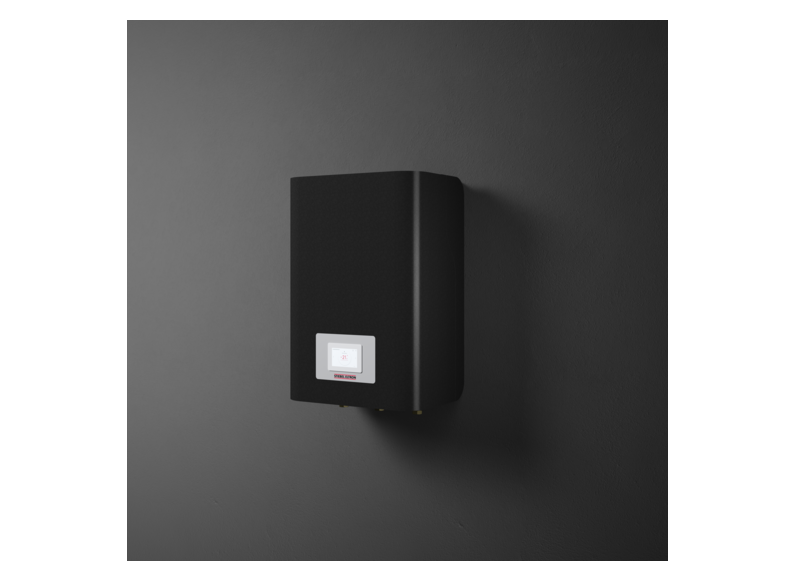

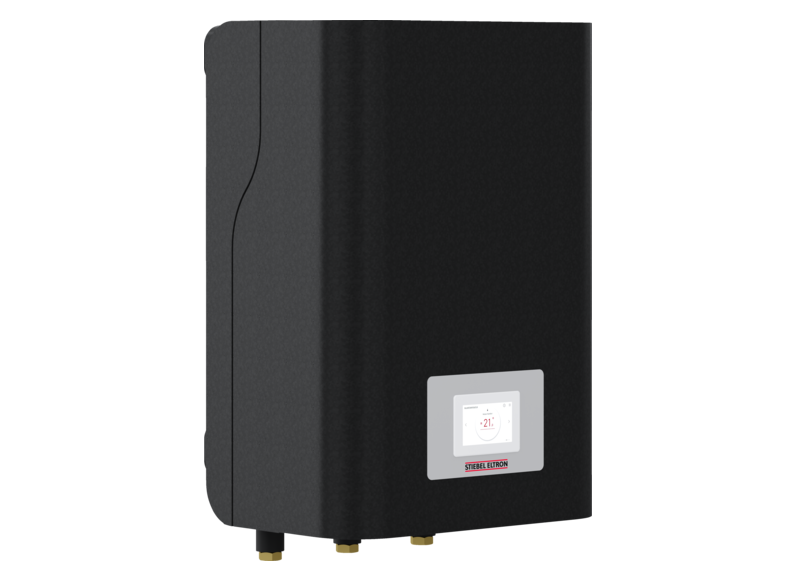

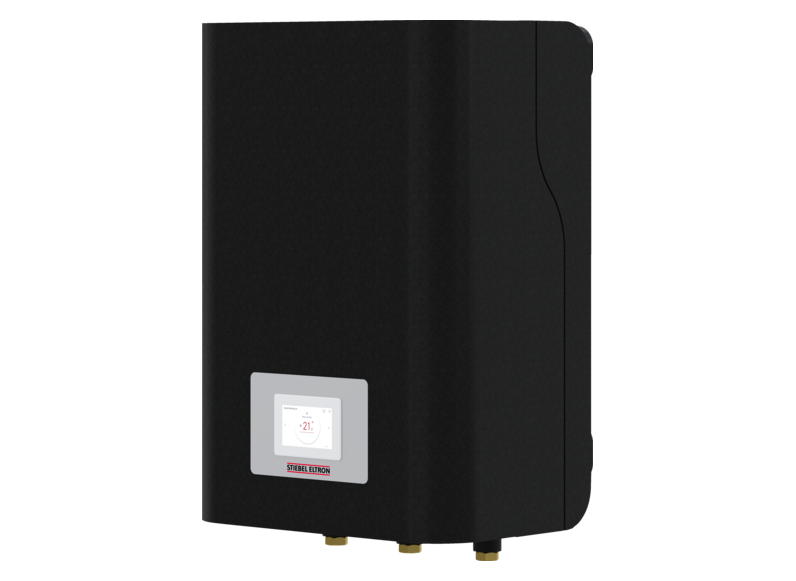

HMS Trend connect

    • Hydraulic module for simplified installation of air source heat pumps
    • Compact design for a small footprint
    • High equipment level through prefabricated hydraulic components
    • Ideal for use in family homes
    • Convenient operation via app, even when out and about
    Questions about the product Get contact

    Product details

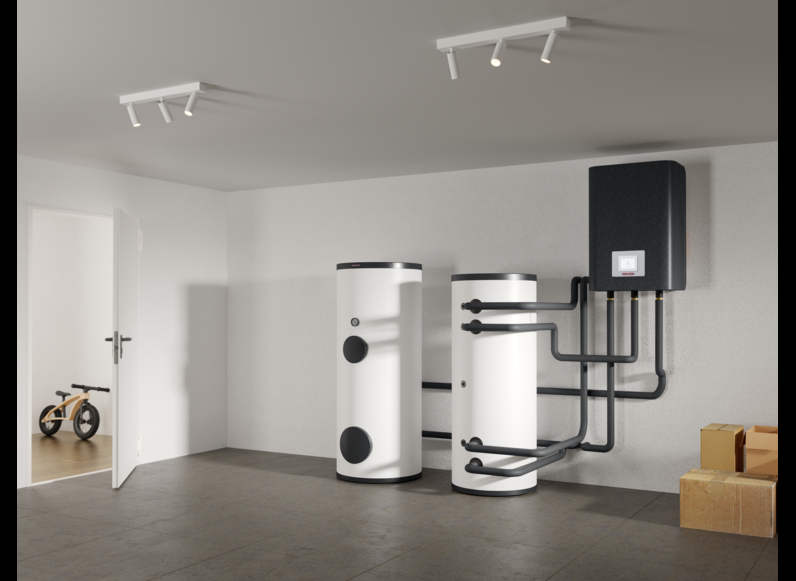

    Straightforward integration of your heating system

    The hydraulic module simplifies the integration of air source heat pumps into the system hydraulics and is equipped with an appliance cover with high quality paint finish. This allows many components to be installed directly in a single step. The heat pump manager, heating circuit pump for heating and DHW, safety valve, expansion vessel and emergency/auxiliary heater are all integrated as standard. An optional insulated connector block can be used, which simplifies installation and reduces installation time. The system can be controlled via app or touchscreen display.


    Technical datasheet

    Product Number: 209150

    External available pressure differential at 1.0 m³/h: 715 hPa

    External available pressure differential at 1.5 m³/h: 661 hPa

    External available pressure differential at 2 m³/h: 468 hPa

    External available pressure differential at 2.5 m³/h: 300 hPa

    Rated voltage, control unit: 230 V

    Rated voltage, emergency/auxiliary heater: 400 V

    Power consumption, emergency/auxiliary heater: 8.80 kW

    Height: 896 mm

    Height incl. connector block: 1131 mm

    Width: 590 mm

    Depth: 405 mm

    Weight: 27 kg

    Connection: G 1

    Show all

    Download as PDF

    Equipment datasheet

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
