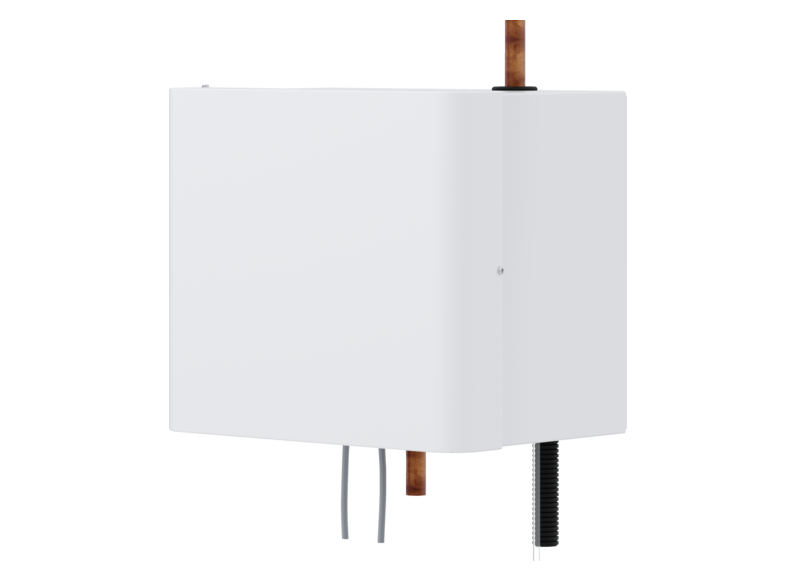

AHP-BH 8.8

    • Wall mounted module with integral emergency/auxiliary heater
    • Optimised for air source heat pumps with R290 refrigerant
    • Suitable for all performance classes of air source heat pumps with R290 refrigerant
    Questions about the product Get contact

    Product details

    Description • Wall mounted module with integral emergency/auxiliary heater. For use with air source heat pumps with R290 refrigerant if no other emergency/auxiliary heater is available. • The module must be connected to the integral cylinder or the heat pump manager via the bus cable supplied.


    Technical datasheet

    Product Number: 207902

    Connection: 22 mm

    Rated voltage, emergency/auxiliary heater: 400 V

    Power consumption, emergency/auxiliary heater: 8800 W

    Height: 664 mm

    Width: 424 mm

    Depth: 325 mm

    Weight: 12 kg

    Max. application limit on the heating side: 75 °C

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
