Compact instantaneous water heater
DCE 11/13 RC

    • Compact instantaneous water heater with electronic open-loop control
    • Very good energy efficiency thanks to 3i technology
    • Convenient, accurate temperature settings
    • Two temperature memory buttons for quick temperature selection
    • Adjustable temperature limit as anti-scalding protection for children

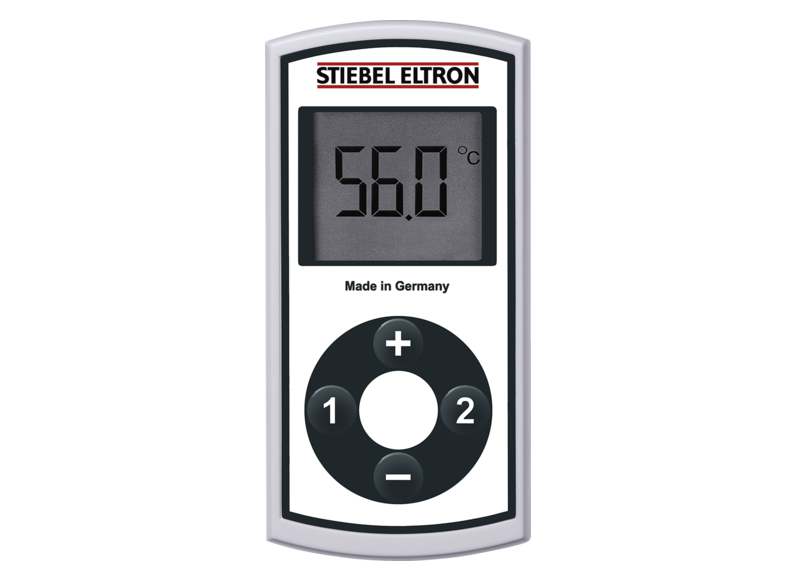

    • With wireless remote control as standard
    • Exceptionally slimline, compact design
    Questions about the product Get contact
    award
    award

    Product details

    Stay in control – even remotely

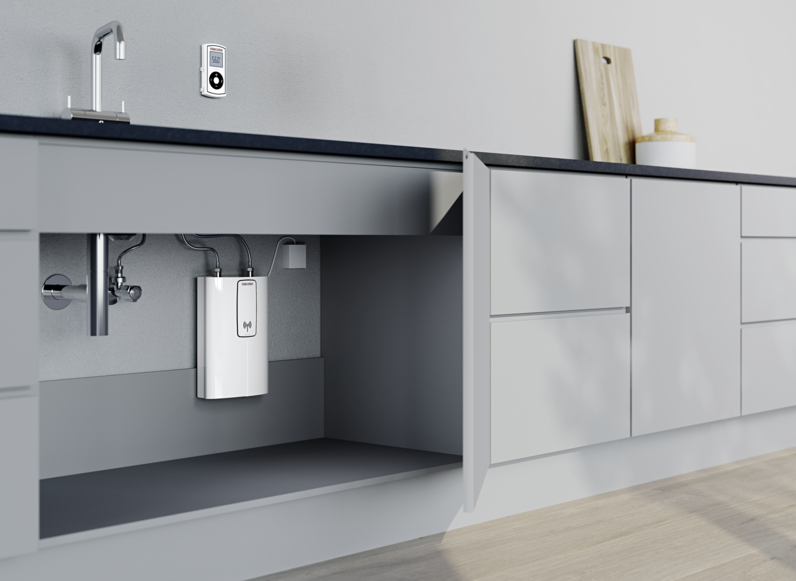

    This appliance is designed with such compact dimensions that it can be invisibly concealed in a kitchen base unit. It can then be controlled quite simply with a wireless remote control. This allows you to conveniently make settings, such as temperature changes, from a distance. It doesn't get much easier than that!


    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 230771

    Rated voltage: 400 V

    Rated voltage 1: 380 V

    Rated voltage 2: 400 V

    Rated voltage 3: 415 V

    Rated output: 11,2/13,5 kW

    Rated output 1: 10,1/12,2 kW

    Rated output 2: 11,2/13,5 kW

    Rated output 3: 12,1/14,5 kW

    Rated current: 18,7/19,5 A

    Rated current 1: 17,8/18,5 A

    Rated current 2: 18,7/19,5 A

    Rated current 3: 19,4/20,2 A

    Fuse protection: 16/20 A

    Fuse protection 1: 16/20 A

    Fuse protection 2: 16/20 A

    Fuse protection 3: 20/20 A

    Frequency: 50/60 Hz

    Frequency 1: 50/60 Hz

    Frequency 2: 50/60 Hz

    Frequency 3: 50/- Hz

    Phases: 3/PE

    IP rating: IP24

    Temperature setting: 20-60 °C

    Colour: white

    Height: 293 mm

    Width: 188 mm

    Depth: 85 mm

    Weight: 2.40 kg

    Energy efficiency class: A

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
