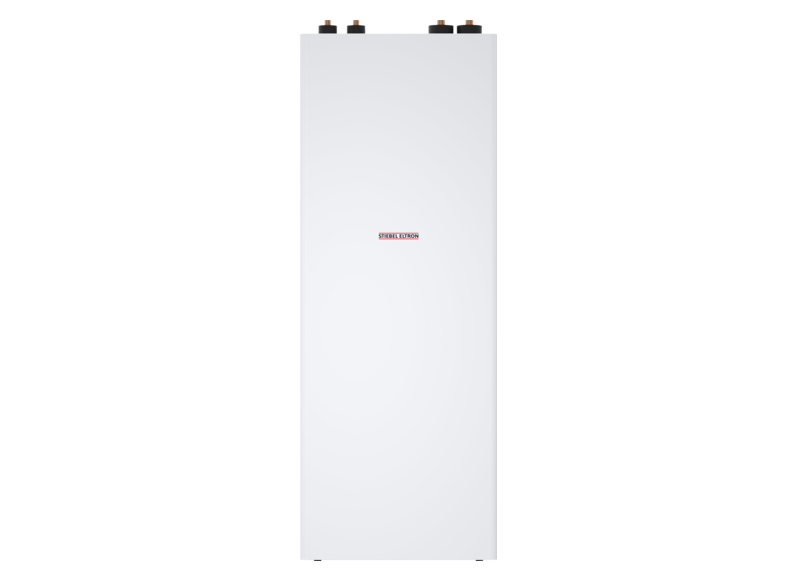

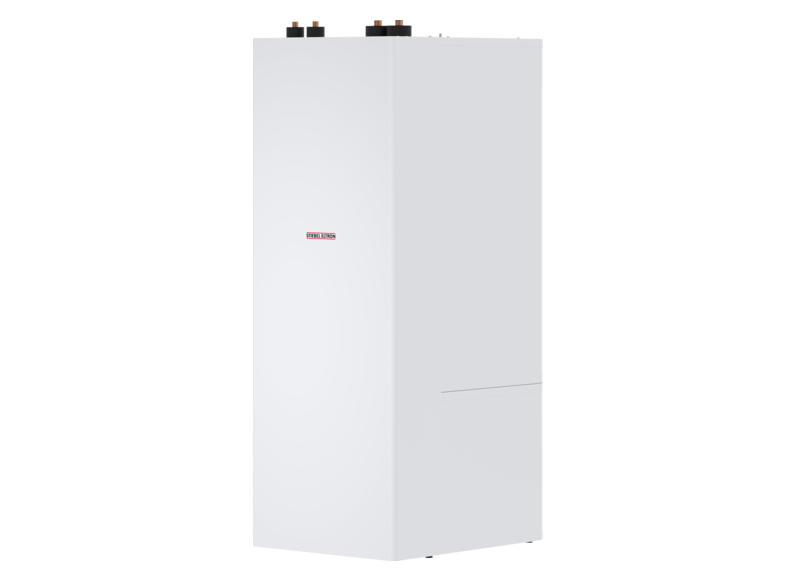

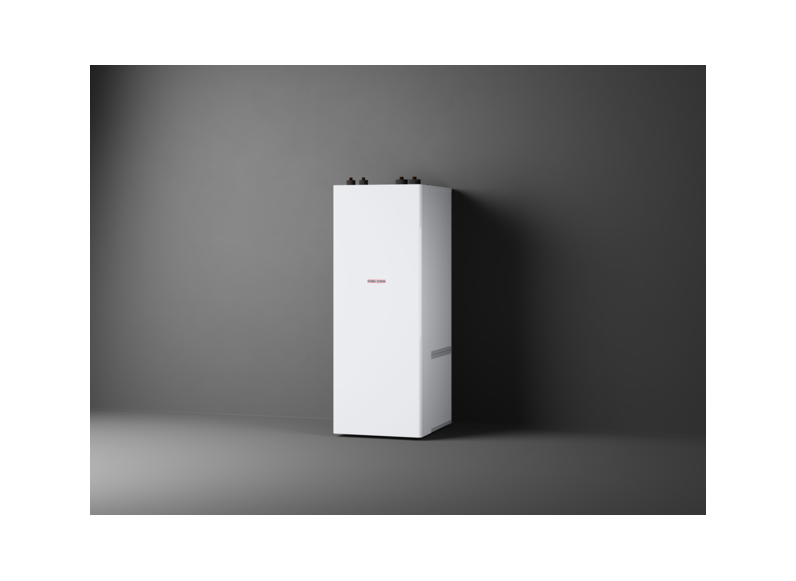

Integral cylinder
HSBC 300 L cool

  • Product details

    Save a good deal of space

    When it comes to accommodating multiple functions in a space saving design, this integral cylinder is far ahead of the pack. There's no need to install two cylinders next to one another – instead, you can use a single unit that has the DHW cylinder and the buffer cylinder arranged one on top of the other. As a result, you only need half as much installation space.

    Control the system with ease

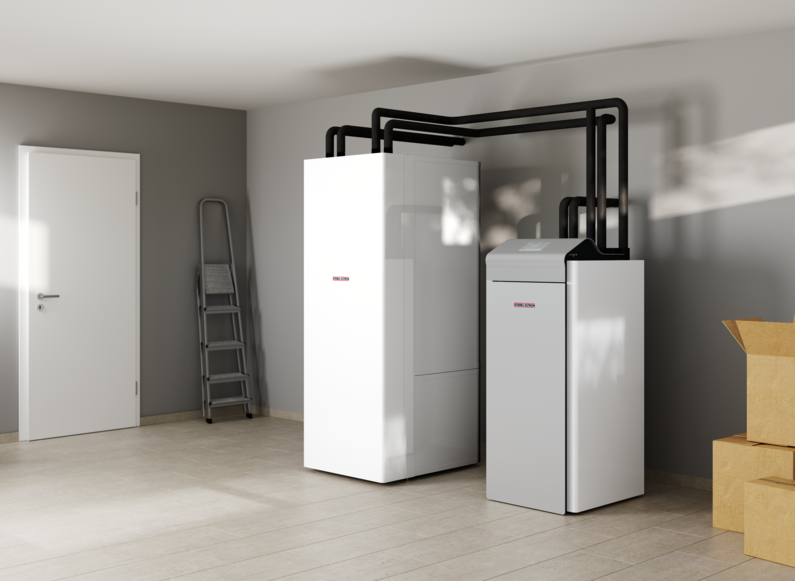

    We have carefully matched both versions of this integral cylinder so that they can be used in a family house in conjunction with one of our heat pumps. Plus, with the heat pump manager (WPM) built in, controlling your appliances couldn't be easier.

    ERP product datasheet
    Technical datasheet

    Product Number: 238826

    Energy efficiency class: B

    Nominal capacity, DHW cylinder: 270 l

    Nominal capacity, buffer cylinder: 100 l

    Surface area, heat exchanger: 3.20 m²

    Height: 1918 mm

    Width: 680 mm

    Depth: 910 mm

    Height when tilted: 2123 mm

    Weight: 248 kg

    Show all

    Download as PDF

    Equipment datasheet
