FCR 21/60

  • Product details

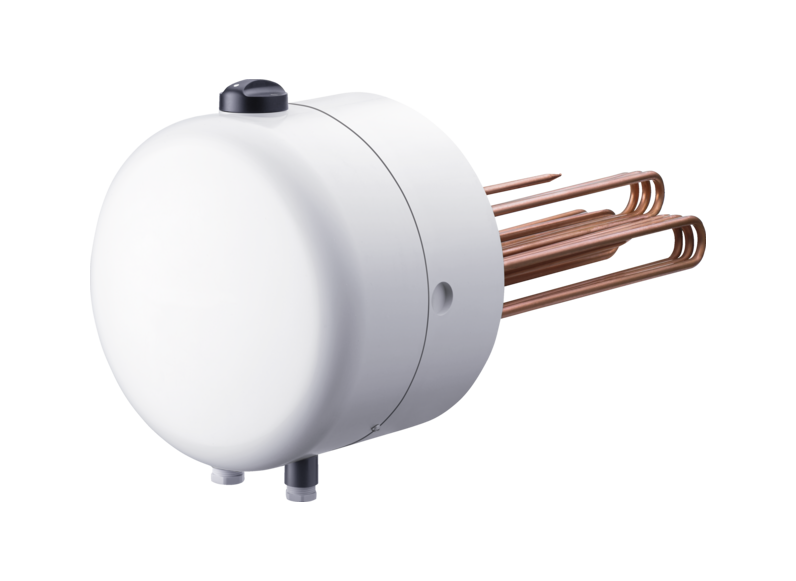

    Description • The flanged immersion heaters are suitable for horizontal installation in unvented DHW cylinders with flange connectors to DIN 4805. • The temperature can be variably adjusted. It is possible to limit the temperature. • Please note the details supplied by the cylinder manufacturer, as well as DIN 4753 and DIN 4751.

    Technical datasheet

    Product Number: 071330

    Connected load ~ 230 V: 2-4 kW

    Connected load ~ 400 V: 2-6 kW

    Power supply: 1/N/PE, 3/N/PE

    Rated voltage: 230/400 V

    Coil voltage: 230 V

    Frequency: 50/60 Hz

    Version: Dual/single circuit

    Integral contactor: X

    IP rating: IP24

    Immersion depth: 400 mm

    Flange diameter: 210 mm
