Air source heat pumps

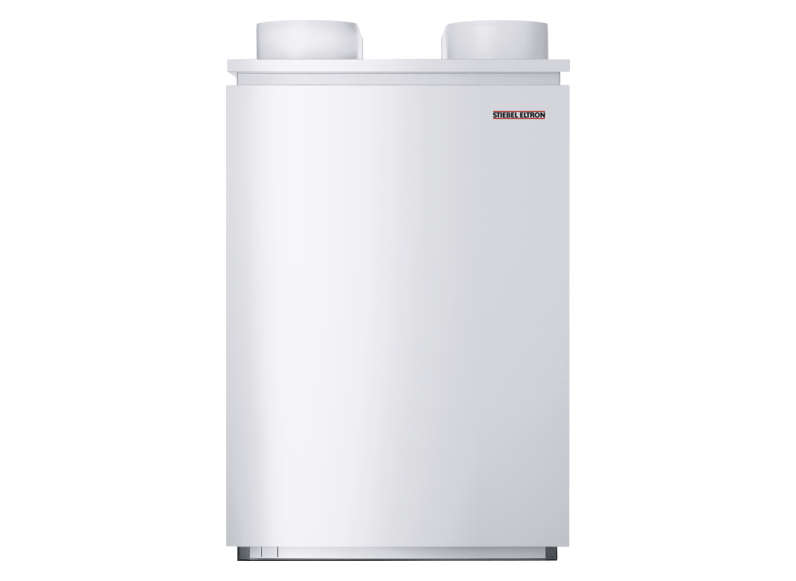

WPL 18 E

  • Product details

    Experience a strong performance on any terrain

    One of the most versatile models of all our air source heat pumps, it has plenty to offer – almost regardless of which building you need it to supply efficiently with heat. Even at outside temperatures of -20 °C, this heat pump achieves high flow temperatures and is therefore also ideally suited to installation in a modernised older building.

    Highly flexible and universally applicable

    If you need to supply a larger building or smaller commercial units, you have the option to connect several appliances and thereby increase the output.



    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 227757

    Energy efficiency class, room heating in moderate climates, average temperature applications: A+

    Heating output at A2/W35 (EN 14511): 11.30 kW

    Heating output at A-7/W35 (EN 14511): 9.72 kW

    COP at A2/W35 (EN 14511): 3.73

    COP at A-7/W35 (EN 14511): 3.27

    SCOP 35 °C (EN 14825): 4.00

    Sound power level (EN 12102): 65 dB(A)

    Min./max. application limits for heat source: -20...40 °C

    Min. application limit on heating side: 15 °C

    Max. application limit on the heating side: 60 °C

    Height: 1116 mm

    Width: 784 mm

    Depth: 1182 mm

    Weight: 212 kg

    Refrigerant: R407C
