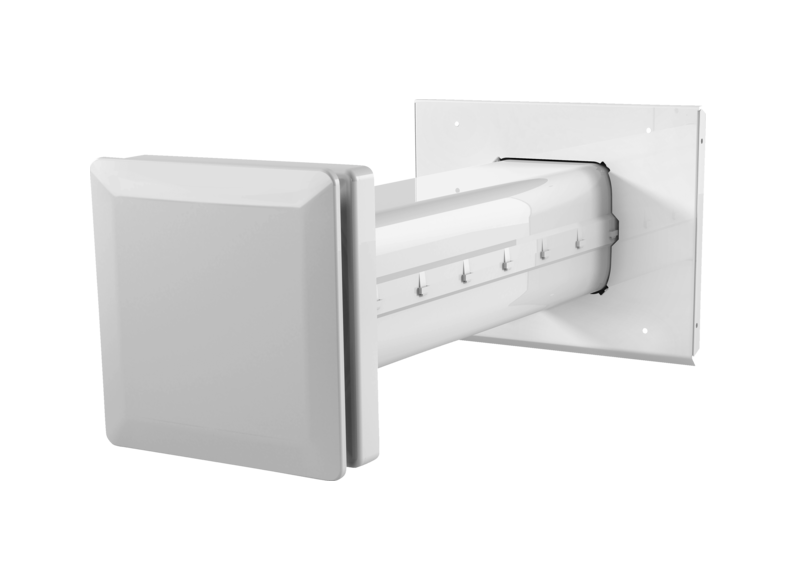

VLR 70 L Trend EU

  • Product details

    Experience a strong performance in an inconspicuous design

    This decentralised ventilation unit supplies fresh air to up to 60 m² of living space. Virtually no heat is lost, as it is fed back into the room with the outdoor air supply. This can help to reduce heating energy losses by as much as 89 %.

    Keep pollutants out

    Dirt and pollen don't stand a chance of finding their way into your home through this ventilation unit. Particularly good filter performance is achieved by filters on both the inside and outside of the unit. As a result, people with allergies can breathe a sigh of relief as well.

    ERP product datasheet
    Technical datasheet

    Product Number: 203133

    Type of ventilation: decentralised supply and extract air

    Power consumption: 2-12 W

    Rated voltage: 24 V

    Sound power level LW total relative to air flow rate: 36 (20 m³/h) dB(A)

    Weight: 5.20 kg

    Min. outlet aperture: Ø 200, 185x185 mm

    Height: 285 mm

    Width: 360 mm

    Depth: 780 mm

    Air flow rate: 20/30/40/49/70 m³/h

    Heat recovery level up to: 89 %

    Ventilation unit type: RVU, bidirectional
