Air distribution system

  • Product details

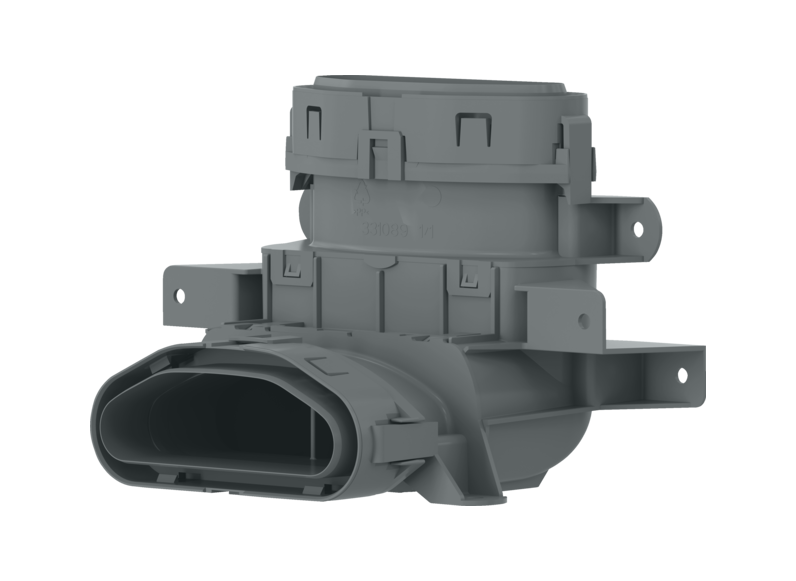

    Description• The LVE 90 degree vertical bend is suitable for the LVE onfloor system. Two adaptors are supplied, which can be turned through 180 degrees. • Low pressure drop and minimal noise thanks to optimised cross-section. • The vertical bend is easy to clean. • The inner rib stiffens the component and separates the air streams. • Ideal for the prefabricated house sector as the compact size of maximum 86 mm enables installation at the factory. The vertical bend can be easily installed in 100 mm walls (timber frame construction). • The ribs on the back ensure secure positioning on the wall. • The vertical bend can be easily adapted to the position of the LVE pipe.

    Technical datasheet

    Product Number: 206252

    Height: 157 mm

    Width: 228 mm
