AWG 160 R

    • Highly convenient thanks to extremely quiet weather grille with very low pressure drop

    Questions about the product

    Get contact

    Product details

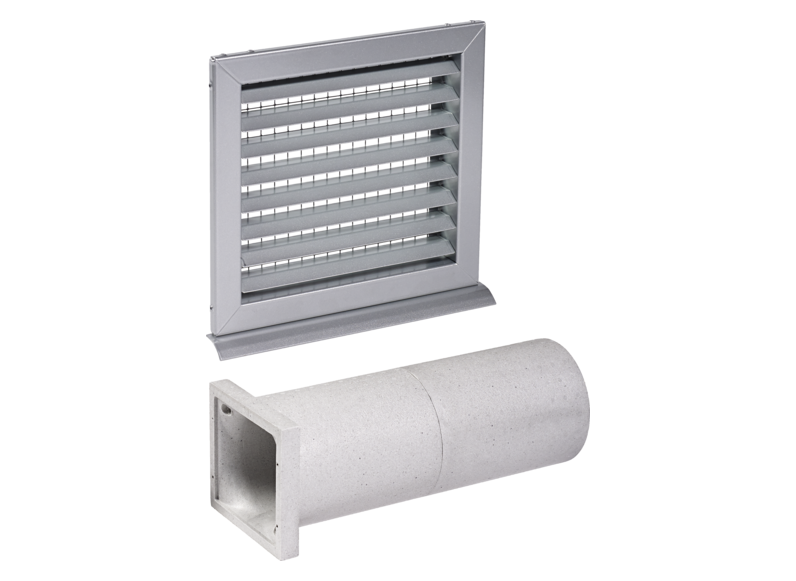

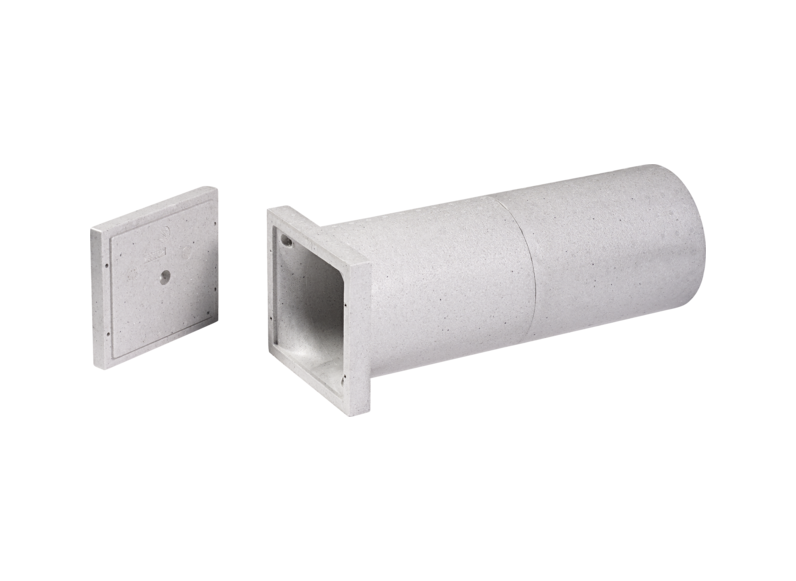

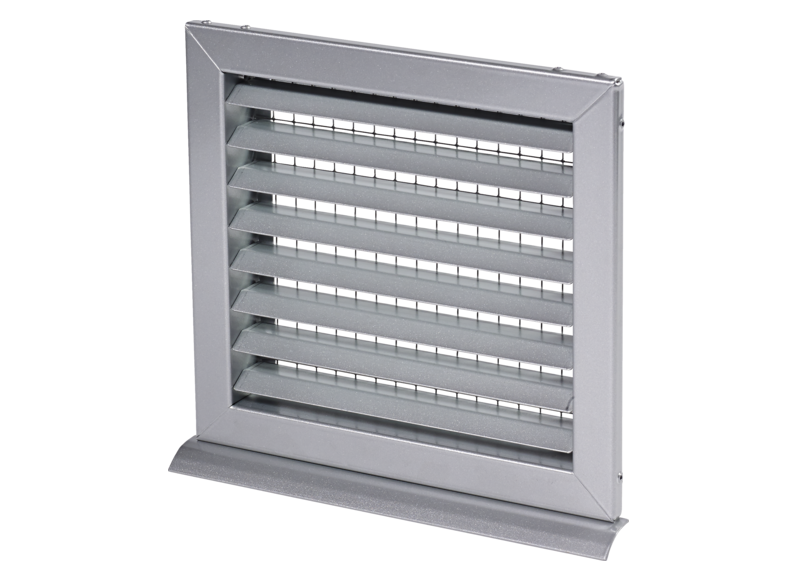

    Application • Sound insulating wall outlet made from EPS, for connecting the air duct. • The weather grille made from painted sheet steel in silver grey has a drip edge for reliable prevention of run marks on the external wall. • If outdoor air is used as a heat source, no additional thermal insulation measures are needed for the pipe. This allows straightforward installation with small dimensions.


    Technical datasheet

    Product Number: 234505

    Max. air flow rate: 350 m³/h

    Condensation limit at: temperature inside pipe / temperature around the pipe / relative humidity around the pipe: -20 °C / 20 °C / 60 %

    Width of surround for weather grille: 220 mm

    Outer pipe diameter: 200 mm

    Pipe length: 545 mm

    Connection diameter: 160 mm

    Weight: 0.50 kg

    Wall outlet material: EPS (grey)

    Weather grille material: Painted sheet steel (silver grey)

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
