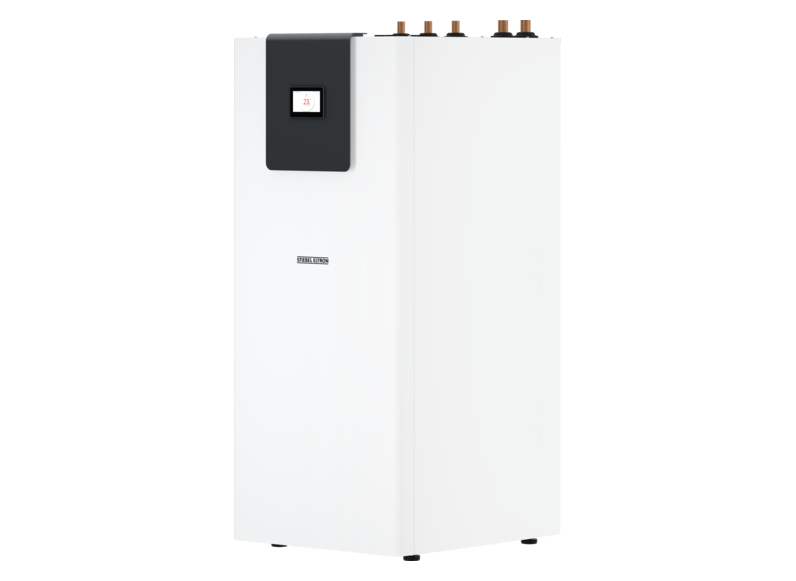

Ground source heat pumps
WPE-I 10 H 400 Plus

    • Ground source heat pump installed indoors for heating and hot water
    • Suitable for new build and modernisation projects
    • Also suitable for larger buildings
    • Low energy costs due to exemplary efficiency
    • High efficiency through optimally matched components and high grade technology
    • Very high hot water convenience thanks to flow temperature of up to 62 °C
    • Cooling function possible thanks to integrated control technology (additional components necessary)
    Questions about the product Get contact
    award

    Product details

    Opt for flexibility

    This powerhouse works highly efficiently to supply your home with heat and hot water. You have complete freedom of choice when it comes to the cylinder – combine it with almost any of our DHW cylinders. Since the key components come ready integrated, it will be a quick and simple matter for your installer to get this heat pump up and running for you.

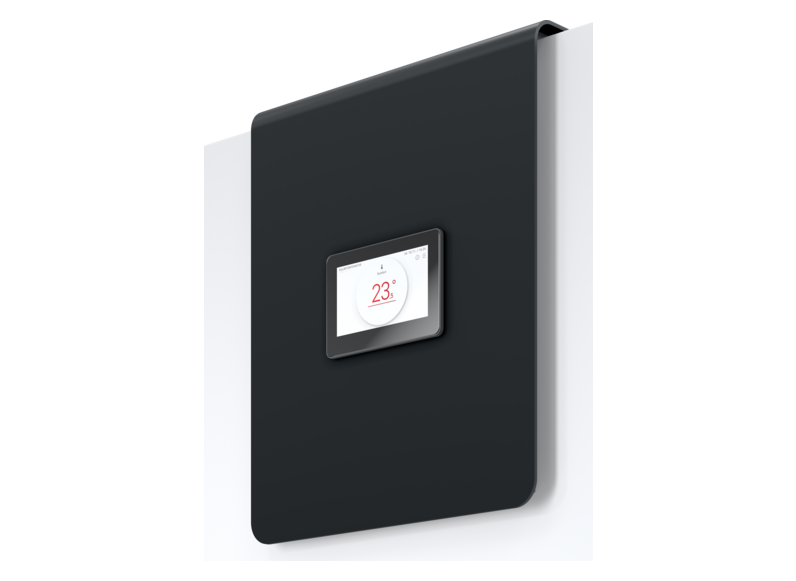

    Convenient touch control

    Convenient control via the innovative heat pump manager to ensure a pleasant room climate that suits your requirements at all times. Simple and intuitive operation via touchscreen with easy-to-read colour display.


    ERP product datasheet
    Technical datasheet

    Product Number: 205831

    Energy efficiency class: A++

    Load profile: XL

    Energy efficiency class, room heating in moderate climates, average temperature applications: A++

    Heating output at B0/W35 (EN 14511): 9,81 kW

    COP at B0/W35 (EN 14511): 4.76

    SCOP 35 °C (EN 14825): 5.09

    Sound power level (EN 12102): 44 dB(A)

    Max. application limit on the heating side: 60 °C

    Height: 1430 mm

    Width: 600 mm

    Depth: 707 mm

    Weight: 130 kg

    Refrigerant: R452B

    Show all

    Download as PDF

    Equipment datasheet

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
