Ground source heat pumps

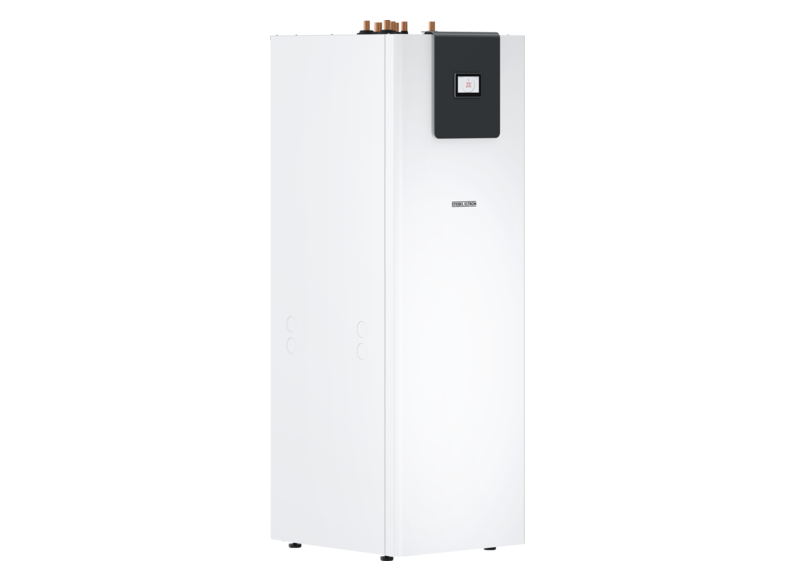

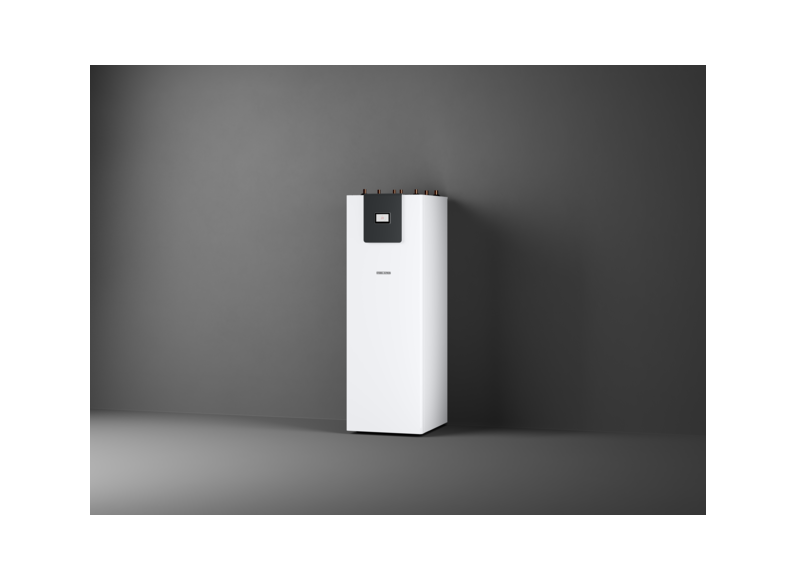

WPE-I 10 HW 400 Plus

    • Ground source heat pump installed indoors for heating and hot water
    • Suitable for new build and modernisation projects
    • Compact solution with key components integrated to save space
    • Low energy costs due to exemplary efficiency
    • High efficiency through optimally matched components and high grade technology
    • Very high hot water convenience thanks to flow temperature of up to 62 °C
    • Cooling function possible thanks to integrated control technology (additional components necessary)
    Questions about the product Get contact
    award

    Product details

    Watch this space

    Thanks to its extremely compact design, this heat pump will bring you convenience and allow you to free up valuable space. All the important components are already integrated, such as a cylinder for up to 240 litres of hot water. With a SCOP (seasonal coefficient of performance) of up to five, this multi-talented appliance also shows you what efficiency means. This attractively priced heat pump not only helps you save money, but also installation space.

    Functional design

    You control the heat pump manager conveniently and intuitively via a colour touchscreen. This feature is just as unobtrusive as the timeless product design.


    ERP product datasheet
    Technical datasheet

    Product Number: 205836

    Energy efficiency class: A++

    Load profile: XL

    Energy efficiency class, room heating in moderate climates, average temperature applications: A++

    Energy efficiency class, DHW heating in moderate climates: A

    Heating output at B0/W35 (EN 14511): 9,81 kW

    Nominal capacity: 184 l

    COP at B0/W35 (EN 14511): 4.76

    SCOP 35 °C (EN 14825): 5.09

    Sound power level (EN 12102): 42 dB(A)

    Max. application limit on the heating side: 60 °C

    Height: 1860 mm

    Width: 600 mm

    Depth: 707 mm

    Weight: 170 kg

    Refrigerant: R452B

    Show all

    Download as PDF

    Equipment datasheet

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
