Air source heat pumps
WPL 17 IKCS classic comfort Set

  • Product details

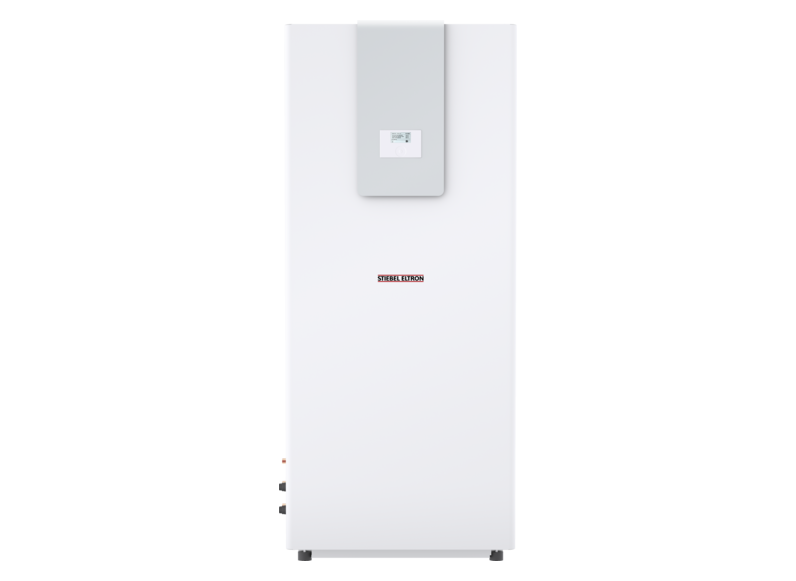

    WPL 09 IKCS classic comfort set
    With the WPL 09 IKCS classic designed for indoor installation, STIEBEL ELTRON presents a system solution for the new build sector that is as elegant as it is efficient. The air inlet and outlet can be attached to the side or rear for flexibility. This makes for ideal positioning with tidy connections in the chosen installation room of the building. Outdoor noise emission is minimised by the structure of the air routing.

    You want to have energy efficiency – not hear it.
    The excellent sound insulation of its air ducts make this heat pump barely audible, even in closely built-up areas. In silent mode, the WPL 09 IKCS classic is even quieter.

    ERP product datasheet
    Technical datasheet

    Product Number: 236735

    Energy efficiency class: A++

    Heating output at A2/W35 (EN 14511): 4.95 kW

    Heating output at A-7/W35 (EN 14511): 7.80 kW

    Cooling capacity at A35/W18: 3.60 kW

    COP at A2/W35 (EN 14511): 3.70

    COP at A-7/W35 (EN 14511): 2.58

    Cooling capacity factor at A35/W18: 2.68

    SCOP (EN 14825): 4.125

    Sound power level (EN 12102): 50 dB(A)

    Min./max. application limits for heat source: -20/35 °C

    Min. application limit on heating side: 15 °C

    Max. application limit on the heating side: 60 °C

    Height: 1892 mm

    Width: 893 mm

    Depth: 833 mm

    Weight: 221 kg

    Refrigerant: R410A
