Air source heat pumps

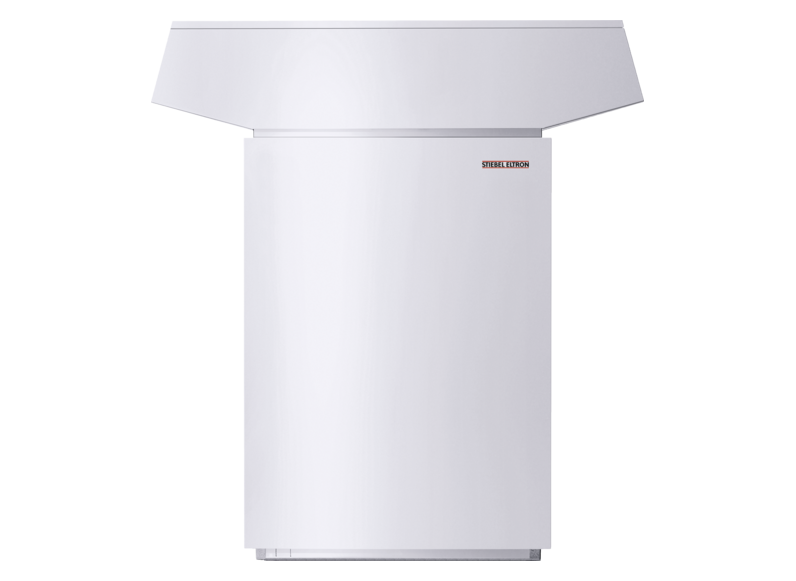

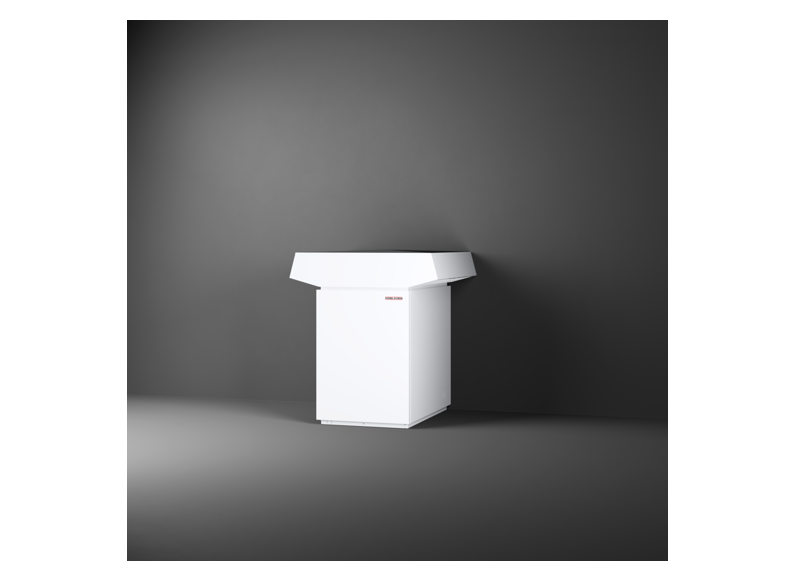

WPL 19 A Set

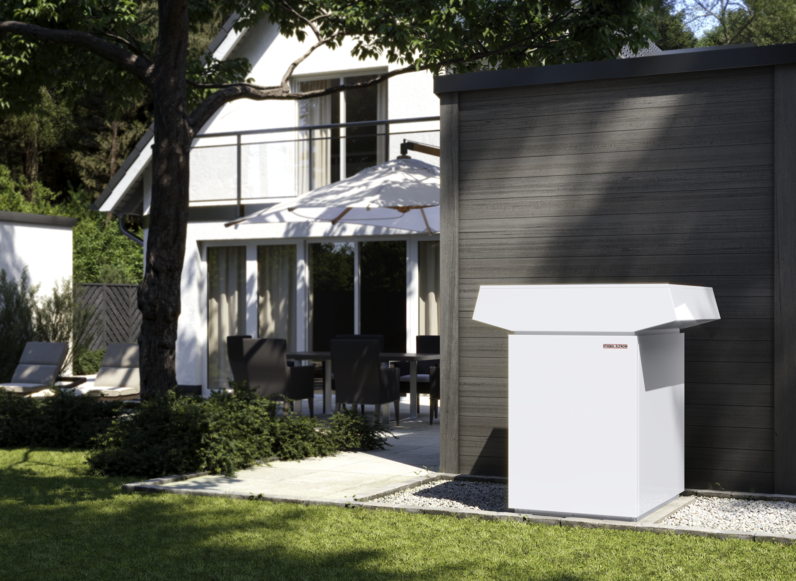

    • Air source heat pump installed outdoors for heating
    • Also ideal for use in modernisation projects
    • Inverter technology for high efficiency and low energy bills
    • Low noise emissions due to intelligent appliance design
    • Operating noise can be further reduced in night mode ("silent mode")
    • Optional integration into the home network and control via smartphone (additional components required)
    • Flow temperatures of up to 65 °C for first rate hot water convenience
    • High energy efficiency class A++/A+++ even at high flow temperatures
    Questions about the product Get contact
    award
    award
    award

    Product details

    Make your heating system modernisation a success story

    This air source heat pump for outdoor installation features a winning combination of first class efficiency and performance. It is an especially good choice for modernisation projects. The generous flow temperature means you will be more than satisfied with the hot water supply that this appliance can deliver.


    ERP product datasheet
    Technical datasheet

    Product Number: 236412

    Energy efficiency class, room heating in moderate climates, average temperature applications: A++

    Heating output at A2/W35 (EN 14511): 7.41 kW

    Heating output at A-7/W35 (EN 14511): 9.91 kW

    COP at A2/W35 (EN 14511): 4.12

    COP at A-7/W35 (EN 14511): 3.32

    SCOP 35 °C (EN 14825): 4.44

    Sound power level (EN 12102): 59 dB(A)

    Min./max. application limits for heat source: -20/40 °C

    Min. application limit on heating side: 15 °C

    Max. application limit on the heating side: 65 °C

    Height: 1434 mm

    Width: 1240 mm

    Depth: 1280 mm

    Weight: 279 kg

    Refrigerant: R410A

    Show all

    Download as PDF

    Equipment datasheet

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
