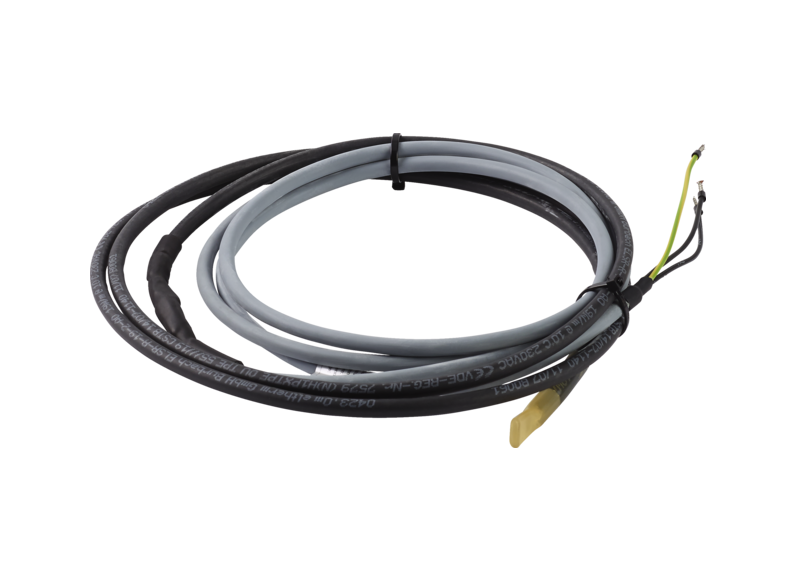

HZB-1

    • Robust ribbon heater
    • Zinc-plated copper wires as earth conductors
    • Full-surface protective aluminium jacket
    Questions about the product Get contact

    Product details

    Description • The heating cable keeps the condensate drain of air source heat pumps frost-free. Self-limiting and flexible. • Two copper wires serve as the supply cable. • The outer sheath is made of UV and moisture-resistant TPE-O. • Available as HZB-1 (length: 1 m) and HZB-2 (length: 2 m).



    Technical datasheet

    Product Number: 232978

    Rated output per metre at 10 °C outdoor air temperature: 10 W

    Heated length: 1000 mm

    Min. handling/installation temperature: -45 °C

    Max. ambient temperature: 65 °C

    Min. bending radius: 2.50 cm

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
