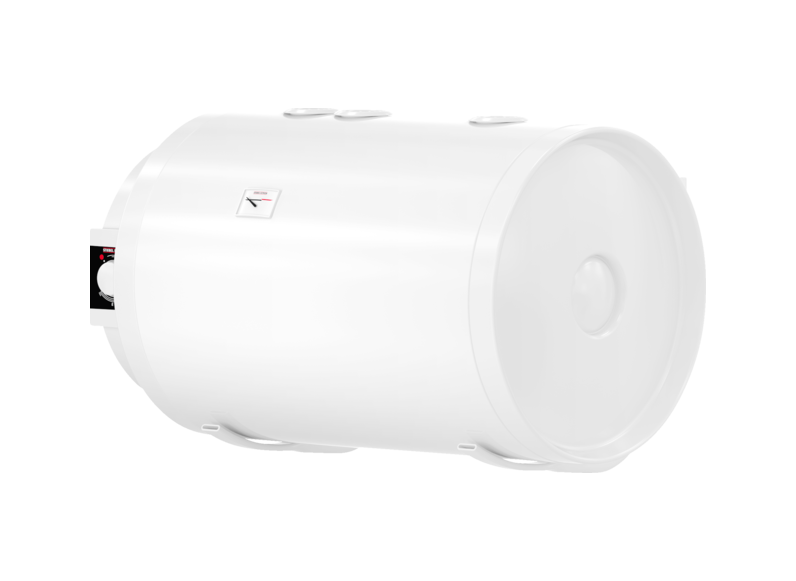

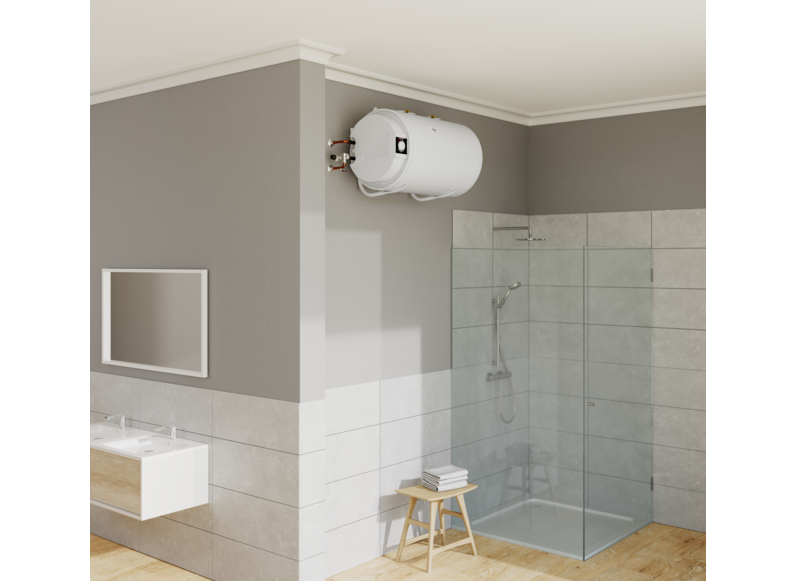

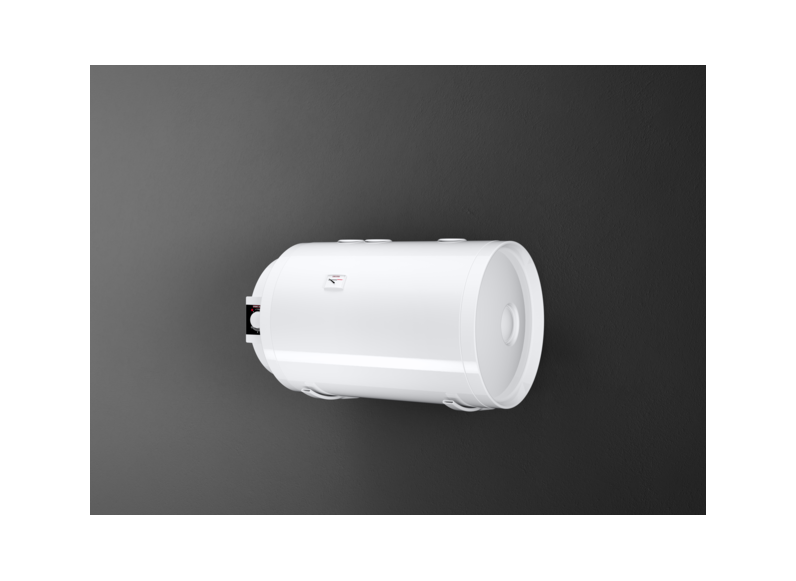

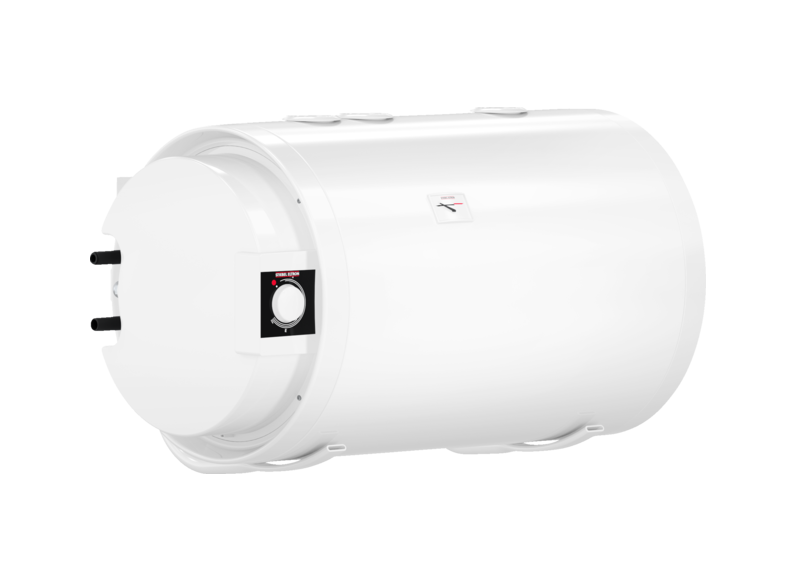

Wall mounted cylinder

  • Product details

    Increase the efficiency of your hot water source

    Hot water the flexible yet efficient way – made possible with this wall mounted cylinder. This is because you have the option of combining it with your existing heating system. So you can efficiently enjoy pleasantly hot water at home during the winter months. This clever combination saves you money.


    Enjoy the benefits for a long time

    The wall mounted cylinder is so well insulated on the inside that heat losses remain low. Thanks to the high quality of the workmanship, the appliance has an impressively long service life. This means you can enjoy your cylinder for longer, with all your hot water needs reliably taken care of.

    ERP product datasheet
    Technical datasheet

    Product Number: 236238

    Connected load ~ 230 V: 2 kW

    Phases: 1/N/PE

    Rated voltage: 220-240 V

    Frequency: 50/60 Hz

    Standby power consumption/24 h at 65 °C: 1.298 kWh

    Energy efficiency class: C

    Nominal capacity: 79 l

    Mixed water amount at 40 °C: 137 l

    Surface area, heat exchanger: 0.60 m²

    Temperature setting range: 5-80 °C

    Min./max. conductivity, DHW: 100–1500 μS/cm

    Max. flow rate: 23.5 l/min

    Width: 871 mm

    Depth: 538 mm
