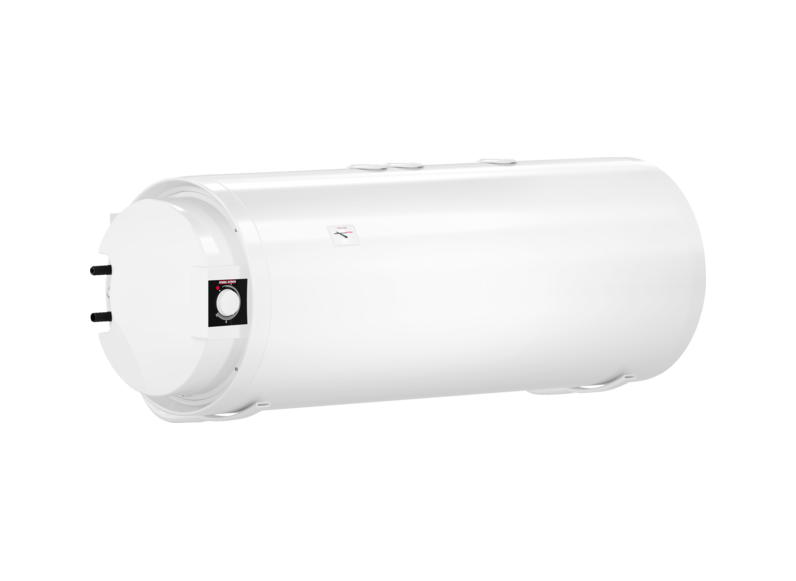

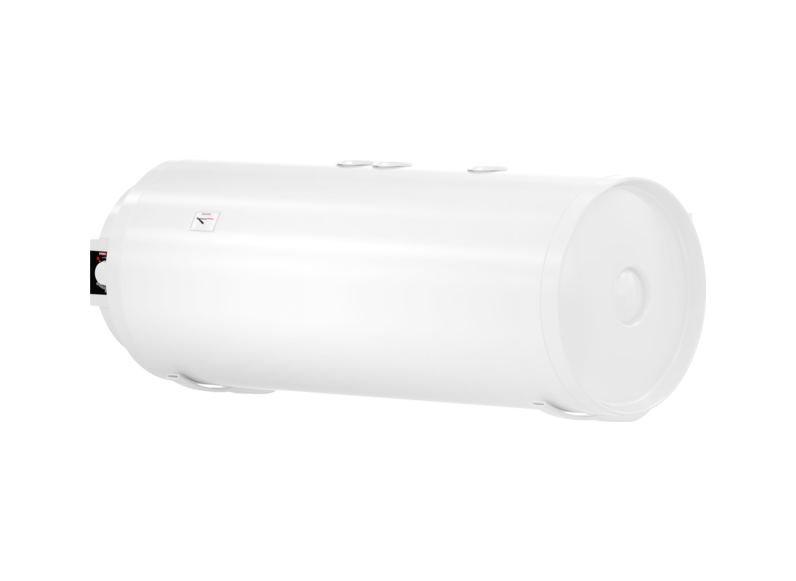

Wall mounted cylinder
PSH 150 WE-H
Questions about the product Get contact
- Hydraulically controlled wall mounted cylinder
- Compact, space saving installation thanks to horizontal design
- Variable temperature selection in the range of 5-80 °C
- Low energy losses thanks to high grade thermal insulation
- Special enamel coating for a long service life
Application • These horizontal wall mounted combi cylinders supply DHW simultaneously to multiple draw-off points – e.g. individual or group supply to the bathroom and kitchen. • The wall mounted combi cylinders are equipped with a stainless steel electric tubular heater. The integral tubular indirect coil allows connection to a central heating system, for example. • The pressure-tested appliance can be combined with all commercially available pressure taps or used for non-pressurised supply to a single draw-off point.
Convenience features • The preferred temperature can be variably adjusted and easily checked using the temperature curve display. • A visual display indicates when the appliance is heating up.
Efficiency • Low energy losses due to high grade thermal insulation. • The integral cylinder operates extremely economically, because it is connected to the heating system via the integral tubular indirect coil. • Design for recycling, for environmentally responsible sorting of the various components.
Installation • Safe handling thanks to integral recessed grips. • Straightforward replacement of all standard wall mounted cylinders. Quick and easy installation using the universal wall mounting bracket. • Suitable for installation in systems with plastic, copper or stainless steel pipework. • The easy to remove flanged immersion heater is equipped with a second sensor well for external control of the heat generator. The large flanged aperture allows effective and convenient descaling. • The DHW circulation connection increases DHW convenience in longer pipe networks.
Safety • The high grade magnesium anode and the steel inner cylinder with special "anticor" directly applied enamel coating protect against corrosion for a long service life. • Automatic frost protection monitors the water temperature and prevents the cylinder from freezing.
Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
