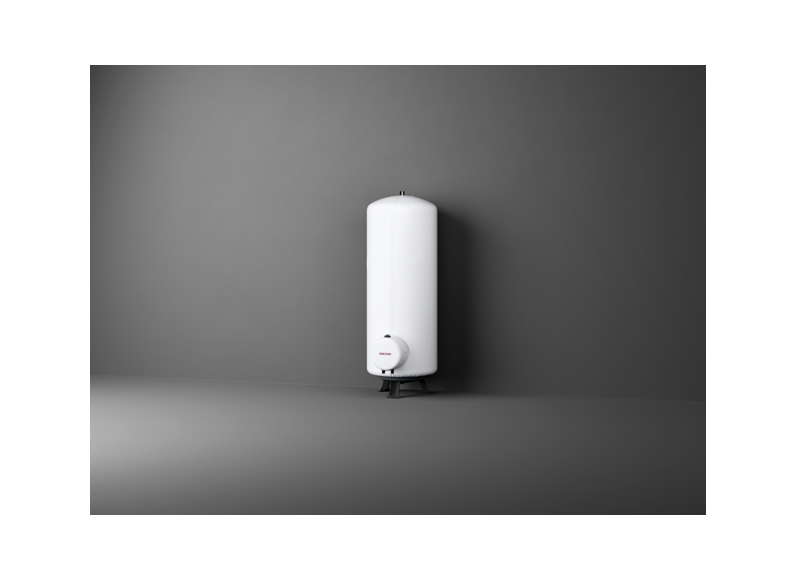

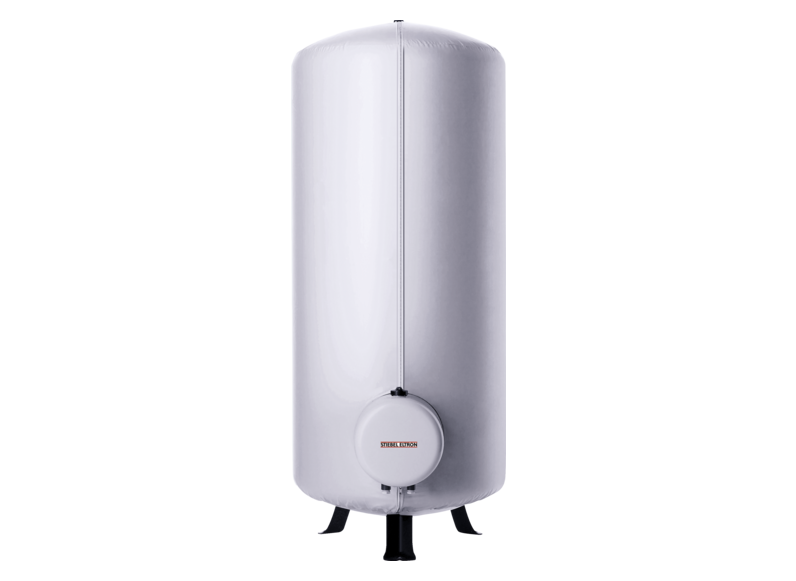

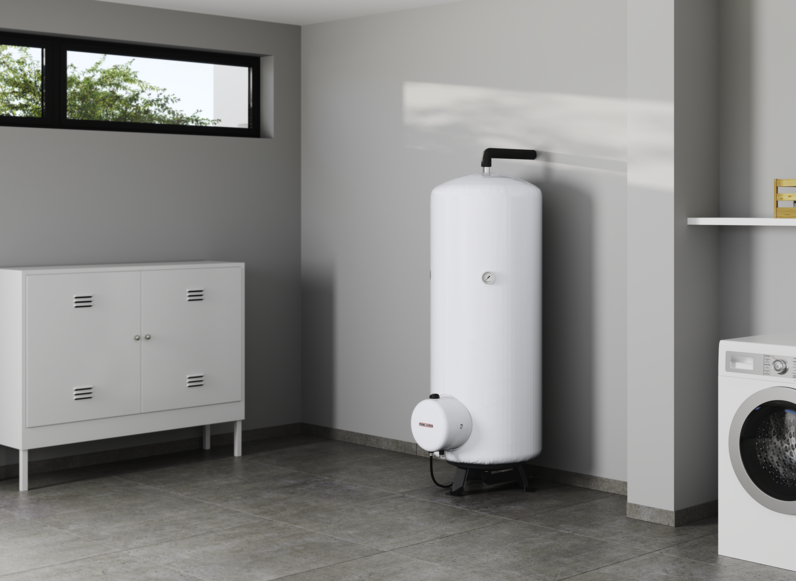

Floor mounted cylinder
SHW 200 ACE

  • Product details

    Benefit from robust reliability

    Economical yet powerful – these two qualities become the perfect symbiosis in this floor mounted cylinder. It is the perfect appliance for your home, as it supplies hot water to several draw-off points with ease.

    Lasting contentment

    Once you opt for this appliance, you'll never have to worry about hot water again. All models have a robust steel tank. The special coating on the inside allows you to benefit from the cylinder's long service life.



    ERP product datasheet
    Technical datasheet

    Product Number: 070074

    Connected load ~ 230 V: 2-6 kW

    Connected load ~ 400 V: 4-6 kW

    Power supply: 1/N/PE, 3/N/PE

    Rated voltage: 230/400 V

    Frequency: 50/60 Hz

    Energy efficiency class: C

    Standby energy consumption/24 h at 65 °C: 1.90 kWh

    Nominal capacity: 200 l

    Mixed water amount at 40 °C: 317 l

    Temperature setting range: 35-82 °C

    Max. flow rate: 30 l/min

    Height: 1578 mm

    Width: 550 mm

    Depth: 690 mm
