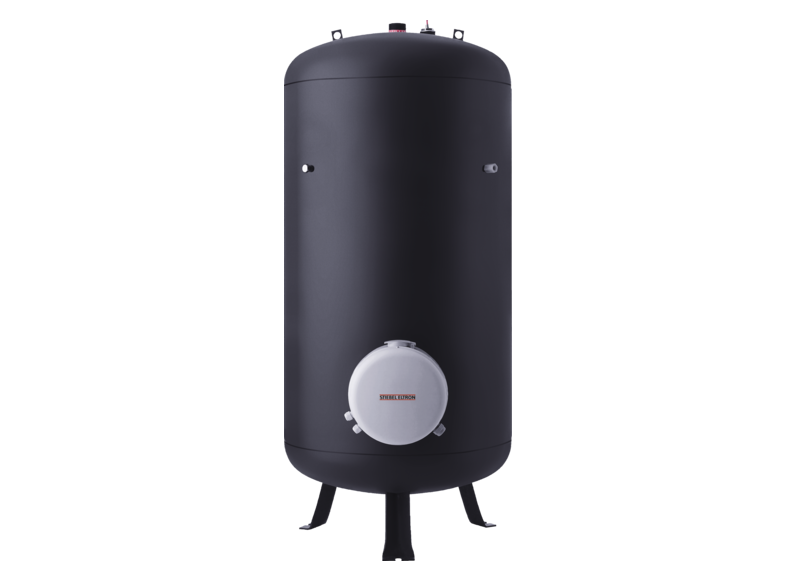

Floor mounted cylinder
SHO AC 600 7,5 kW

  • Product details

    Hot water on a grand scale

    Wherever many people come together, there is a greater demand for hot water. To ensure there is always enough to go round, we have developed this floor mounted cylinder with a remarkably high capacity. It is therefore suitable for large households and commercial premises alike.


    Benefit from high temperatures

    A further impressive feature is the very high heat-up temperature – the best prerequisite for enormous mixed water volumes. The appliance is therefore more than capable of living up to high demands and creates plenty of feel-good hot water moments too.

    ERP product datasheet
    Technical datasheet

    Product Number: 001414

    Connected load ~ 400 V: 7,5 kW

    Power supply: 3/PE

    Rated voltage: 400 V

    Frequency: 50/60 Hz

    Energy efficiency class: C

    Standby energy consumption/24 h at 65 °C: 2.90 kWh

    Nominal capacity: 600 l

    Mixed water amount at 40 °C: 835 l

    Temperature setting range: 35-85 °C

    Max. flow rate: 40 l/min

    Height: 1685 mm

    Width: 750 mm

    Depth: 1000 mm
