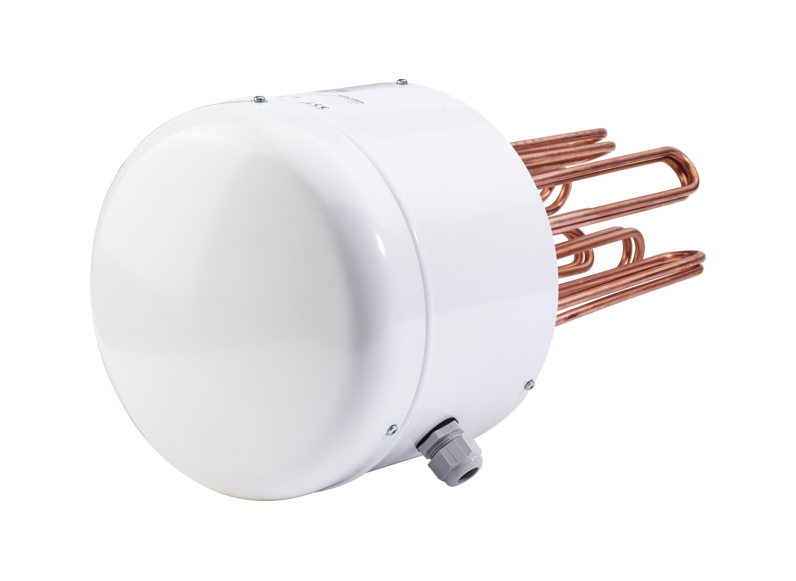

FCR 28/180 E

  • Product details

    Description • The flanged immersion heaters are suitable for horizontal installation in unvented DHW cylinders with flange connectors to DIN 4805. • The temperature can be variably adjusted. It is possible to limit the temperature. • Please note the details supplied by the cylinder manufacturer, as well as DIN 4753 and DIN 4751.



    Reach-Information
    Technical datasheet

    Product Number: 000695

    Connected load ~ 400 V: 18 kW

    Power supply: 3/PE

    Rated voltage: 400 V

    Coil voltage: 400 V

    Frequency: 50 Hz

    Version: Single circuit

    Integral contactor: X

    IP rating: IP24

    Immersion depth: 325 mm

    Flange diameter: 280 mm
