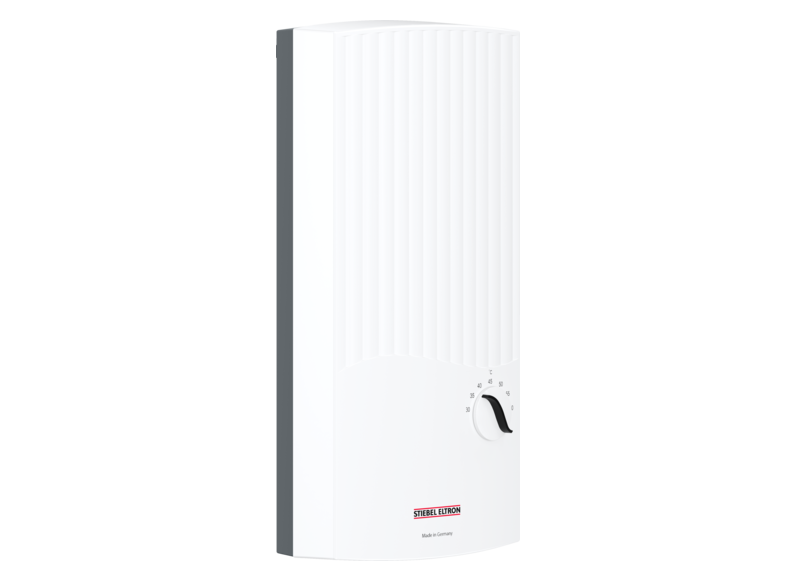

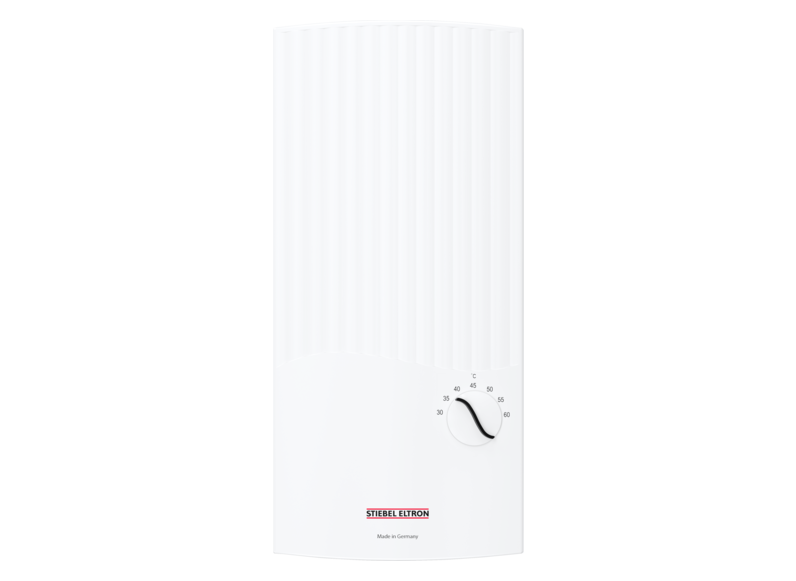

Comfort instantaneous water heaters
PEY 18/21/24

  • Product details

    Adjust water to suit your needs

    This instantaneous water heater has everything under control. You'll no longer be hampered by temperature fluctuations and long water heating times. Why? Because the electronic control system permanently monitors the water temperature. For you, this means accurate temperature delivery without restrictions.

    Flexible settings with immediate results

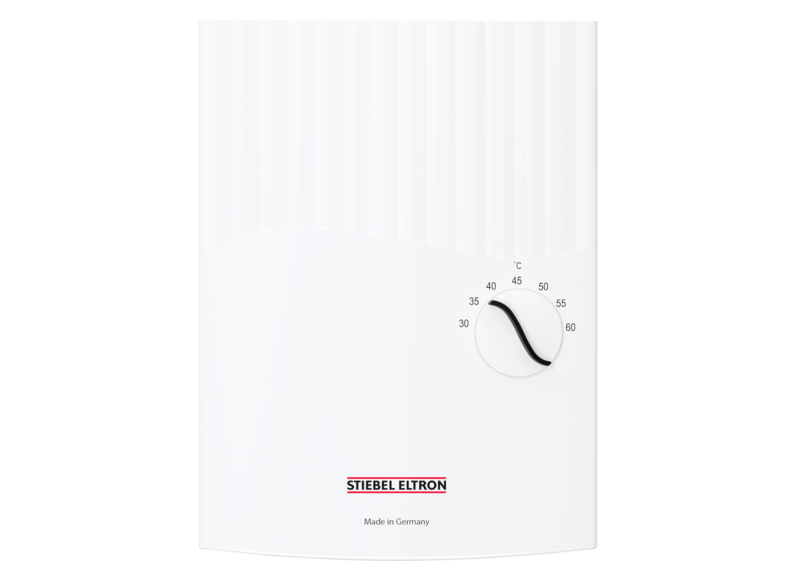

    This appliance is also extremely convenient to operate. With the practical rotary selector, you can set the required temperature quickly and flexibly. The analogue temperature scale gives you a clear view of your choice.



    ERP product datasheet
    Technical datasheet

    Product Number: 233993

    Rated voltage: 400 V

    Rated voltage 1: 380 V

    Rated voltage 2: 400 V

    Rated voltage 3: 415 V

    Rated output: 18/21/24 kW

    Rated output 1: 16.2/19/21.7 kW

    Rated output 2: 18/21/24 kW

    Rated output 3: 19.4/22.6/25.8 kW

    Rated current: 29/31/35 A

    Rated current 1: 27.6/29.5/33.3 A

    Rated current 2: 29/31/35 A

    Rated current 3: 30.1/32.2/36.3 A

    Fuse protection: 32/32/35 A

    Fuse protection 1: 32/32/35 A

    Fuse protection 2: 32/32/35 A

    Fuse protection 3: 32/32/40 A

    Frequency: 50/60 Hz

    Frequency 1: 50/60 Hz

    Frequency 2: 50/60 Hz

    Frequency 3: 50/- Hz

    Phases: 3/PE

    Temperature setting: 30 - 60 °C

    Colour: white

    Height: 485 mm

    Width: 226 mm

    Depth: 93 mm

    Weight: 3.60 kg

    Energy efficiency class: A
