Comfort instantaneous water heaters
PER 18/21/24

  • Product details

    Use water your way

    Every one of our fully electronic instantaneous water heater models provides hot water at the exact temperature you have set at all times. No ifs or buts. To make this work, the appliances compensate for all external influences. As a result, only the water you want comes out of your tap. How about that for convenience?

    Know exactly what’s going on

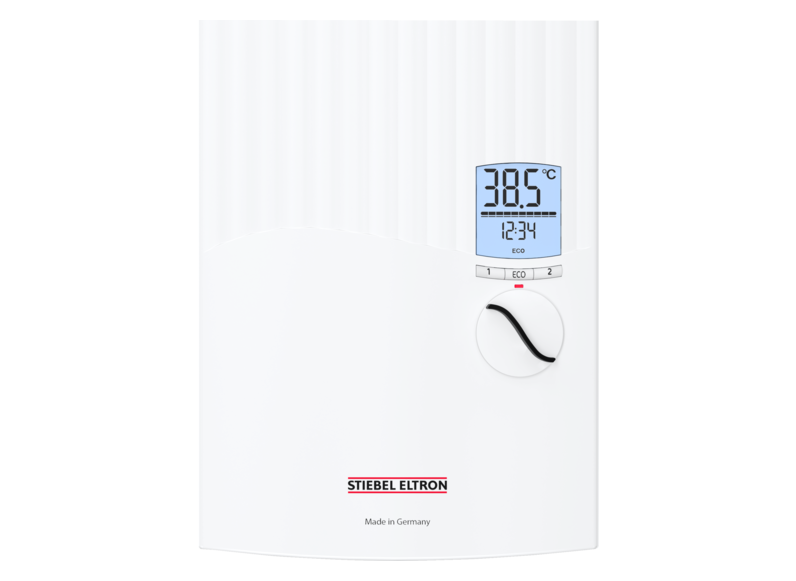

    The digital multifunction display clearly shows you your preferred water temperature and the ECO level. Use the two memory buttons to quickly select your individual temperatures of choice. In addition, further convenience and safety functions are available.



    ERP product datasheet

    Technical datasheet

    Product Number: 233990

    Rated voltage: 400 V

    Rated voltage 1: 380 V

    Rated voltage 2: 400 V

    Rated voltage 3: 415 V

    Rated output: 18/21/24 kW

    Rated output 1: 16.2/19/21.7 kW

    Rated output 2: 18/21/24 kW

    Rated output 3: 19.4/22.6/25.8 kW

    Rated current: 29/31/35 A

    Rated current 1: 27.6/29.5/33.3 A

    Rated current 2: 29/31/35 A

    Rated current 3: 30.1/32.2/36.3 A

    Fuse protection: 32/32/35 A

    Fuse protection 1: 32/32/35 A

    Fuse protection 2: 32/32/35 A

    Fuse protection 3: 32/32/40 A

    Frequency: 50/60 Hz

    Frequency 1: 50/60 Hz

    Frequency 2: 50/60 Hz

    Frequency 3: 50/- Hz

    Phases: 3/PE

    Temperature setting: 30-60 °C

    Colour: white

    Height: 485 mm

    Width: 226 mm

    Depth: 93 mm

    Weight: 3.80 kg
