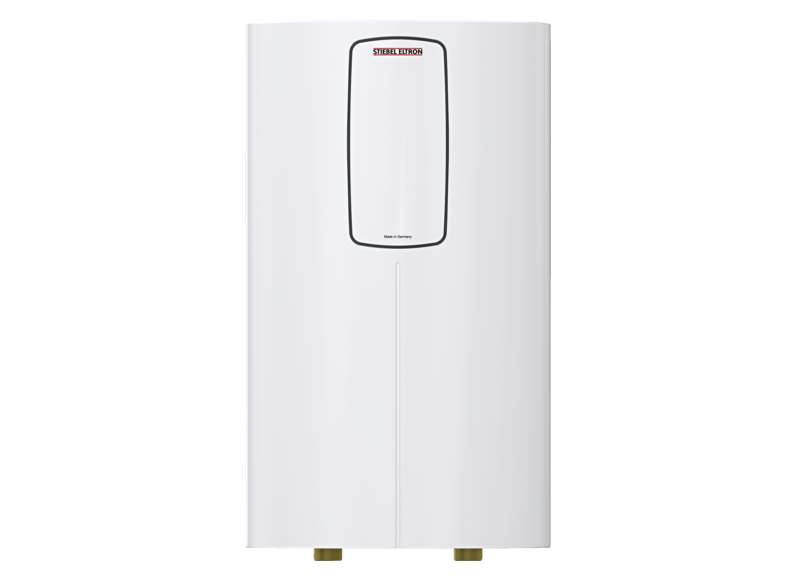

Compact instantaneous water heater
DCE-C Trend

  • 360°
    DCE-C 6/8 Trend
    • Compact instantaneous water heater with electronic open-loop control
    • Good energy efficiency thanks to 2i technology
    • Outlet temperature fixed at 55 °C
    • Individual temperature adjustment through mixing with cold water
    • Exceptionally slimline, compact design

    Select other variants

    Rated output

    6.0/8.0  kW

    10.0/12.0  kW
    Questions about the product Get contact
    award
    award

    Product details

    Find the perfect mix

    With this model, we have placed the emphasis on providing you with a convenient hot water supply. The electronically controlled appliance is preset to a constant 55 °C. This makes it ideal for everyday use. You simply mix in cold water directly at the tap to achieve the preferred temperature that's right for you.

    The pleasure of water without the worries

    Hard water is not a problem for this instantaneous water heater: The integrated bare wire technology reduces unsightly limescale deposits. In addition, there is hardly any residual heat in the heating system when the appliance is switched off.


    Available from June 2019

    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 238148

    Rated voltage: 220 V

    Rated voltage 1: 220 V

    Rated voltage 2: 230 V

    Rated output: 6.0/8.0 kW

    Rated output 1: 6.0/8.0 kW

    Rated output 2: 6.6/8.7 kW

    Rated current: 27.3/36.4 A

    Rated current 1: 27.3/36.4 A

    Rated current 2: 28.5/38.0 A

    Fuse protection: 30/40 A

    Fuse protection 1: 30/40 A

    Fuse protection 2: 30/40 A

    Frequency: 50/60 Hz

    Frequency 1: 50/60 Hz

    Frequency 2: 50/60 Hz

    Phases: 1/N/PE

    IP rating: IP25

    Temperature setting: 55 °C

    Colour: white

    Height: 372 mm

    Width: 217 mm

    Depth: 97 mm

    Weight: 2.50 kg

    Energy efficiency class (A+ → F): A

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
