DHW heat pumps

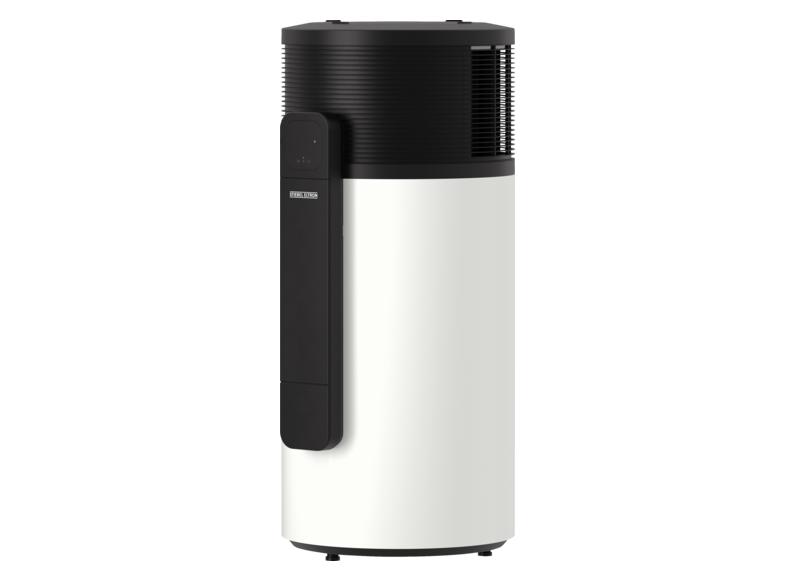

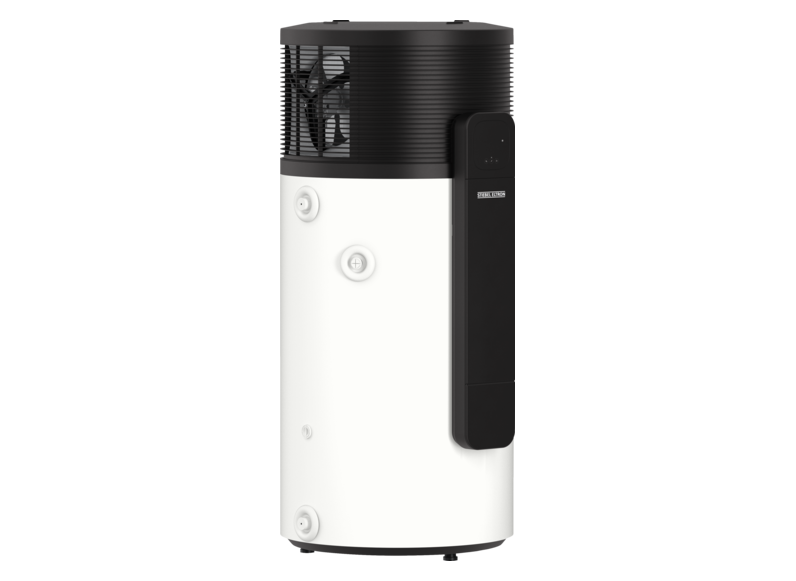

SHP-O 200 Plus

  • 360°
    • Attractively designed DHW heat pump installed outdoors
    • Intuitive and simple app-based operation
    • Can be used regardless of the installed heating system
    • Quiet operation, as designed specifically for recirculation air mode
    • SG Ready interface as standard for optimised PV self-consumption
    • Low running costs through high efficiency as optimised for recirculation air mode
    • Hygiene program and timer function optimise the domestic hot water experience
    • Futureproof thanks to natural refrigerant
    Questions about the product Get contact

    Product details

    Give your hot water the comfort factor

    This DHW heat pump is your perfect entry into renewables. With its new, contemporary design, this appliance heats domestic hot water in family houses – regardless what type of heating system you already have. The heat pump makes use of most of the free ambient heat, instead of oil or gas. If you wish, you can operate the appliance, which is particularly environmentally friendly and very energy efficient thanks to the natural refrigerant propane, using self-generated electricity from your PV system.

    Easy, convenient control

    The appliance offers you every conceivable advantage in operation: Simply connect the heat pump to your WLAN. Then take control in total comfort via app – even away from home.  A further advantage: Your qualified contractor can access the appliance via the Servicewelt portal and change settings quickly and conveniently. This often makes an on-site visit unnecessary.


    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 204472

    Nominal load profile (EN 16147): L

    Nominal DHW temperature (EN 16147): 53 °C

    Height x diameter: 1478 x 650 mm

    Nominal capacity: 200 l

    Energy efficiency class, DHW heating (outdoor air), load profile L: A++

    Energy efficiency class, DHW heating (indoor air), load profile L: A++

    Sound power level (EN 12102): 58,2 dB(A)

    Min./max. application limits for heat source: +6/+43 °C

    Max. DHW temperature with heat pump: 65 °C

    Min. DHW temperature with heat pump: 35 °C

    Show all

    Download as PDF

    Equipment datasheet

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
